博客学术汇测试报告
Author：MTingle
major:人工智能
Build your hopes like a tower!
目录
一.项目简介
二.开发技术
三.测试用例设计
四.自动化测试代码
common包
博客编辑
博客列表
登录页面
未登录测试
主函数
五.性能测试
六.测试总结
一.项目简介
该项目是一款基于 SSM 框架搭建的个人博客系统。该系统依托 SSM 框架强大的稳定性和灵活性，实现了用户管理、文章发布等核心功能。用户可便捷注册登录，随心发布文章，分享生活感悟与专业见解。
二.开发技术
SpringBoot、SpringMVC、MyBatis、Token、MD5等。

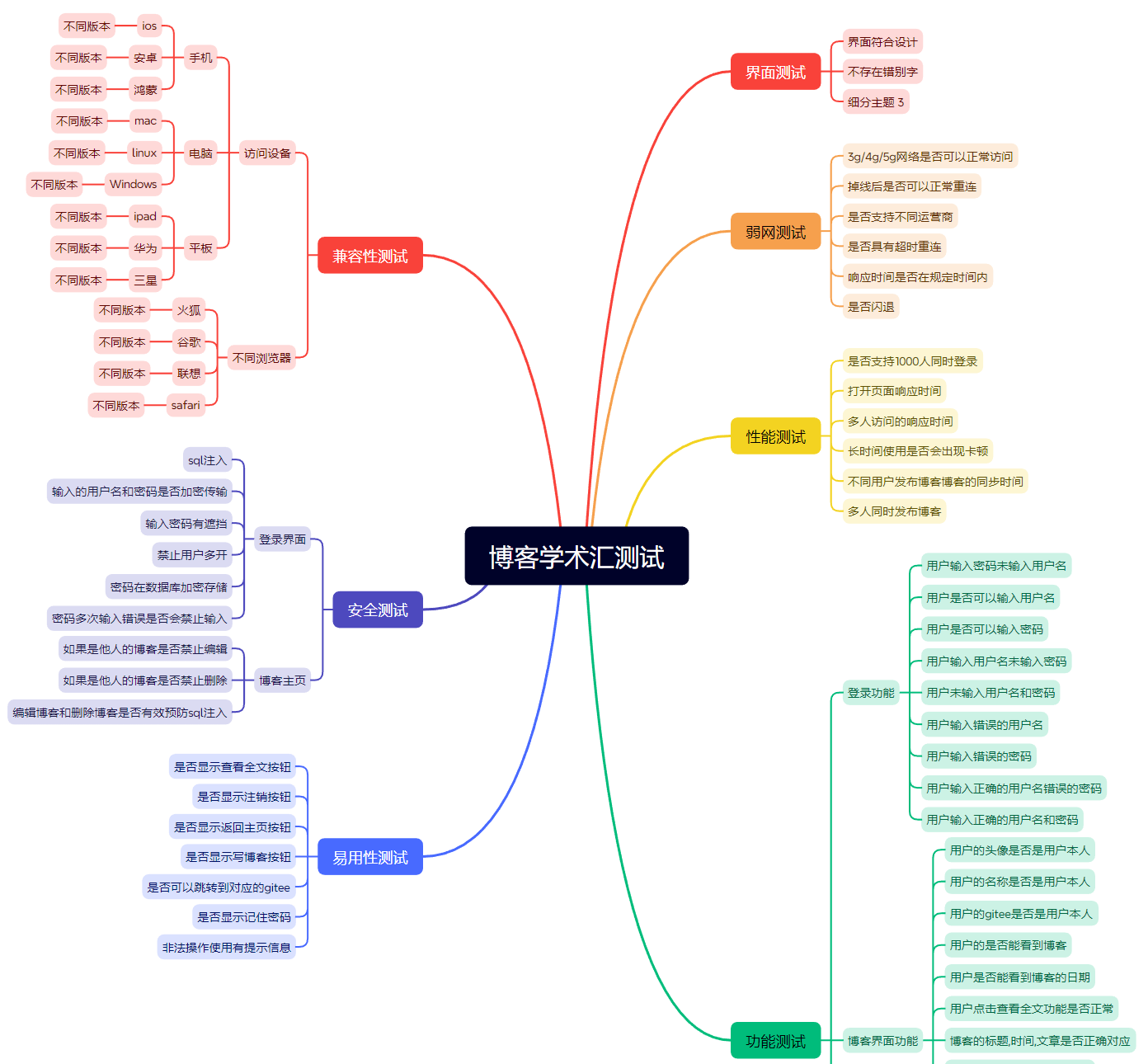

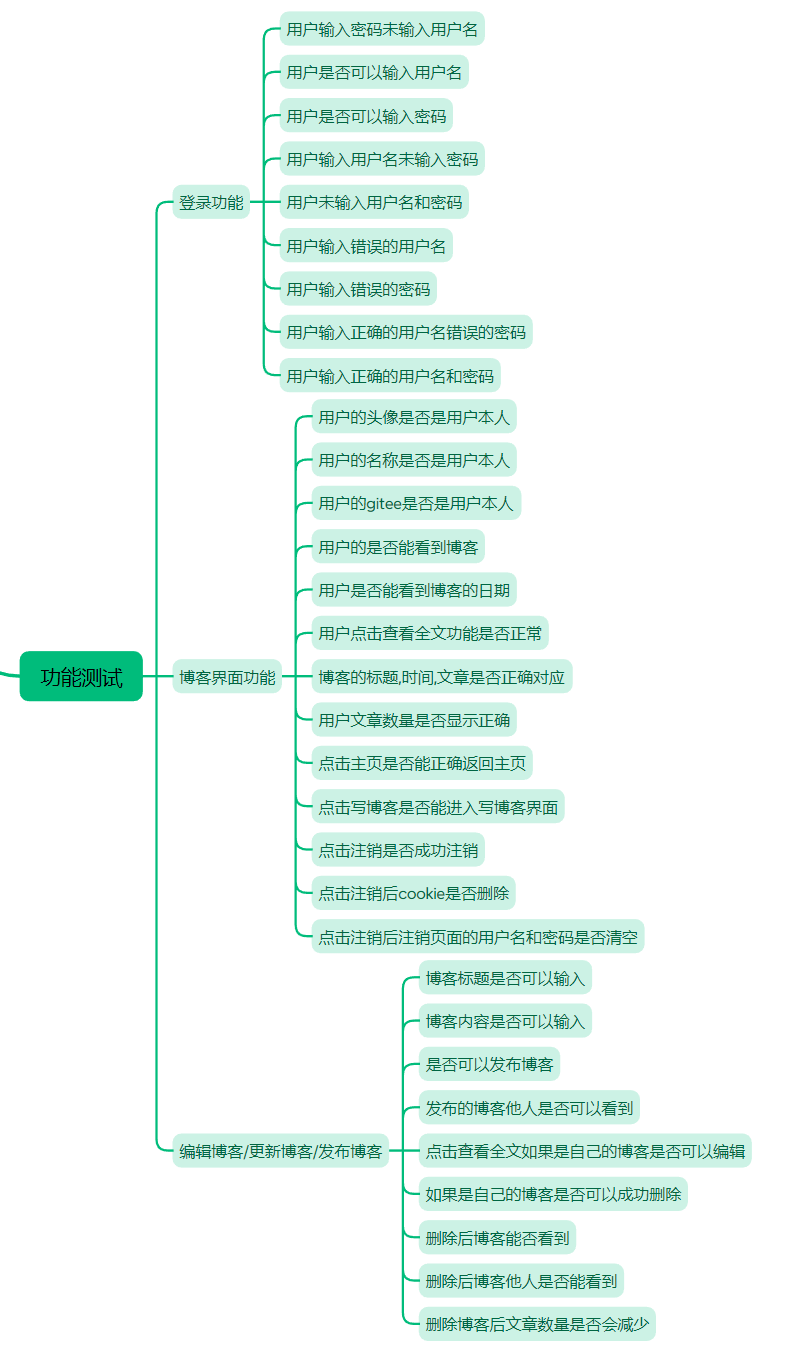

三.测试用例设计
四.自动化测试代码
common包
package common;import io.github.bonigarcia.wdm.WebDriverManager;
import org.apache.commons.io.FileUtils;
import org.openqa.selenium.OutputType;
import org.openqa.selenium.TakesScreenshot;
import org.openqa.selenium.WebDriver;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.chrome.ChromeOptions;import java.io.File;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.time.Duration;public class Utils {public static WebDriver driver;public static WebDriver createDriver(){if(driver == null){WebDriverManager.chromedriver().setup();ChromeOptions options = new ChromeOptions();//允许访问所有的链接options.addArguments("--remote-allow-origins=*");driver = new ChromeDriver(options);//等待driver.manage().timeouts().implicitlyWait(Duration.ofSeconds(2));}return driver;}public Utils(String url){//调用driver对象driver = createDriver();//访问urldriver.get(url);}public void getScreenShot(String str) throws IOException {// ./src/test/image/// /2024-07-17/// /test01-17453010.png// /test02-17453020.png// /2024-07-18/// /test01-17453030.png// /test02-17453034.png//屏幕截图SimpleDateFormat sim1 = new SimpleDateFormat("yyyy-MM-dd");SimpleDateFormat sim2 = new SimpleDateFormat("HHmmssSS");String dirTime = sim1.format(System.currentTimeMillis());String fileTime = sim2.format(System.currentTimeMillis());//./src/test/image/2024-07-17/test01-17453020.pngString filename ="./src/test/image/"+ dirTime +"/" + str + "-" + fileTime+".png";File srcFile = ((TakesScreenshot)driver).getScreenshotAs(OutputType.FILE);//srcFile放到指定位置FileUtils.copyFile(srcFile,new File(filename));}
}
博客编辑
ackage tests;import common.Utils;
import org.openqa.selenium.By;
import org.openqa.selenium.Keys;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.interactions.Actions;
import org.openqa.selenium.support.ui.WebDriverWait;import java.security.Key;
import java.time.Duration;public class EditPage extends Utils {public static String url = "http://8.137.19.140:9090/blog_edit.html";public EditPage() {super(url);}public void EditSuc() throws InterruptedException {String blogTile = "测试开发";driver.findElement(By.cssSelector("#title")).sendKeys(blogTile);WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(2));//第二种方法实现----下节课再讲
// 1.鼠标先挪动到博客内容区域
// 2.双击鼠标将内容删掉：鼠标双击内容+键盘DELETE
// 3.输入内容WebElement ele = driver.findElement(By.cssSelector("#editor > div.CodeMirror.cm-s-default.CodeMirror-wrap > div.CodeMirror-scroll > div.CodeMirror-sizer > div > div > div > div.CodeMirror-code > div > pre > span > span"));Actions actions = new Actions(driver);//perform作用：为了在页面看到效果Thread.sleep(1000);actions.doubleClick(ele).perform();Thread.sleep(1000);actions.sendKeys(Keys.DELETE).perform();// 输入新内容actions.sendKeys("键盘输入测试开发").perform();Thread.sleep(1000);driver.findElement(By.cssSelector("#submit")).click();Thread.sleep(3000);driver.quit();}}
博客列表
package tests;import common.Utils;
import jdk.jshell.execution.Util;
import org.openqa.selenium.Alert;import java.util.List;public class ListPage extends Utils {public static String url = "http://8.137.19.140:9090/blog_list.htmlq";public ListPage() {super(url);}/*** 未登录状态下访问列表页*/public void listNoLogin(){// 处理警告弹窗Alert alert = driver.switchTo().alert();alert.accept();// 调整到登录页面String expect = driver.getTitle();assert expect.equals("登录页面");}}
登录页面
package tests;import common.Utils;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;
import org.openqa.selenium.support.ui.ExpectedConditions;
import org.openqa.selenium.support.ui.WebDriverWait;import java.io.IOException;
import java.time.Duration;public class LoginPage extends Utils {public static String url = "http://8.137.19.140:9090/blog_login.html";public LoginPage() {super(url);}public void loginPageRight(){// 通过查找元素判断页面加载成功与否driver.findElement(By.cssSelector("body > div.nav > a:nth-child(5)"));driver.findElement(By.cssSelector("body > div.container-login > div"));}public void loginSuc() throws IOException {// 通过查找元素判断页面加载成功与否driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan");driver.findElement(By.cssSelector("#password")).sendKeys("123456");driver.findElement(By.cssSelector("#submit")).click();// 检查是否登录成功: 通过检查是否存在 "查看全文" 按钮判断是否登录成功driver.findElement(By.cssSelector("body > div.container > div.right > div:nth-child(1) > a"));// 页面标题判断是否登录成功String expect = driver.getTitle();assert expect.equals("博客列表页");
// getScreenShot(getClass().getName());
// assert expect.equals("博客列表111");// driver.quit();}/*** 登录失败: 显示等待处理弹窗*/public void loginFail() throws IOException {driver.navigate().back();// 通过 clear 保证输入框没有文本信息driver.findElement(By.cssSelector("#username")).clear();driver.findElement(By.cssSelector("#password")).clear();// 通过查找元素判断页面加载成功与否driver.findElement(By.cssSelector("#username")).sendKeys("zhangsan111");driver.findElement(By.cssSelector("#password")).sendKeys("123456");driver.findElement(By.cssSelector("#submit")).click();// 检查是否登录成功: 通过检查是否存在 "查看全文" 按钮判断是否登录成功
// driver.findElement(By.cssSelector("body > div.container > div.right > div:nth-child(1) > a"));
// getScreenShot(getClass().getName());WebDriverWait wait = new WebDriverWait(driver, Duration.ofSeconds(5));try {Alert alert = wait.until(ExpectedConditions.alertIsPresent());alert.accept();} catch (Exception e) {System.out.println("等待5秒后仍未检测到弹窗");}// 页面标题判断是否登录成功String expect = driver.getTitle();System.out.println(expect);
// assert expect.equals("博客列表");
// assert expect.equals("博客列表111");driver.quit();}}
未登录测试
package tests;import common.Utils;
import org.openqa.selenium.Alert;
import org.openqa.selenium.By;import java.io.IOException;public class PageByNoLogin extends Utils {public static String listurl = "http://8.137.19.140:9090/blog_list.html";public static String editurl = "http://8.137.19.140:9090/blog_edit.html";public static String detailurl = "http://8.137.19.140:9090/blog_detail.html";public PageByNoLogin() {super("");}// 列表页未登录处理public void listNoLogin() throws IOException {driver.get(listurl);Alert alert = driver.switchTo().alert();alert.accept();String expect = driver.getTitle();getScreenShot(getClass().getName());assert expect.equals("博客登录页");}public void detailNoLogin() throws IOException {driver.get(detailurl);Alert alert = driver.switchTo().alert();alert.accept();String expect = driver.getTitle();getScreenShot(getClass().getName());assert expect.equals("博客登录页");}public void editNoLogin() throws IOException {driver.get(editurl);Alert alert = driver.switchTo().alert();alert.accept();String expect = driver.getTitle();getScreenShot(getClass().getName());assert expect.equals("博客登录页");}}
主函数
package tests;import java.io.IOException;public class RunTests {public static void main(String[] args) throws IOException, InterruptedException {LoginPage login = new LoginPage();
// login.loginPageRight();login.loginSuc();
// login.loginFail();EditPage editPage = new EditPage();editPage.EditSuc();// ListPage listPage = new ListPage();}
}
五.性能测试

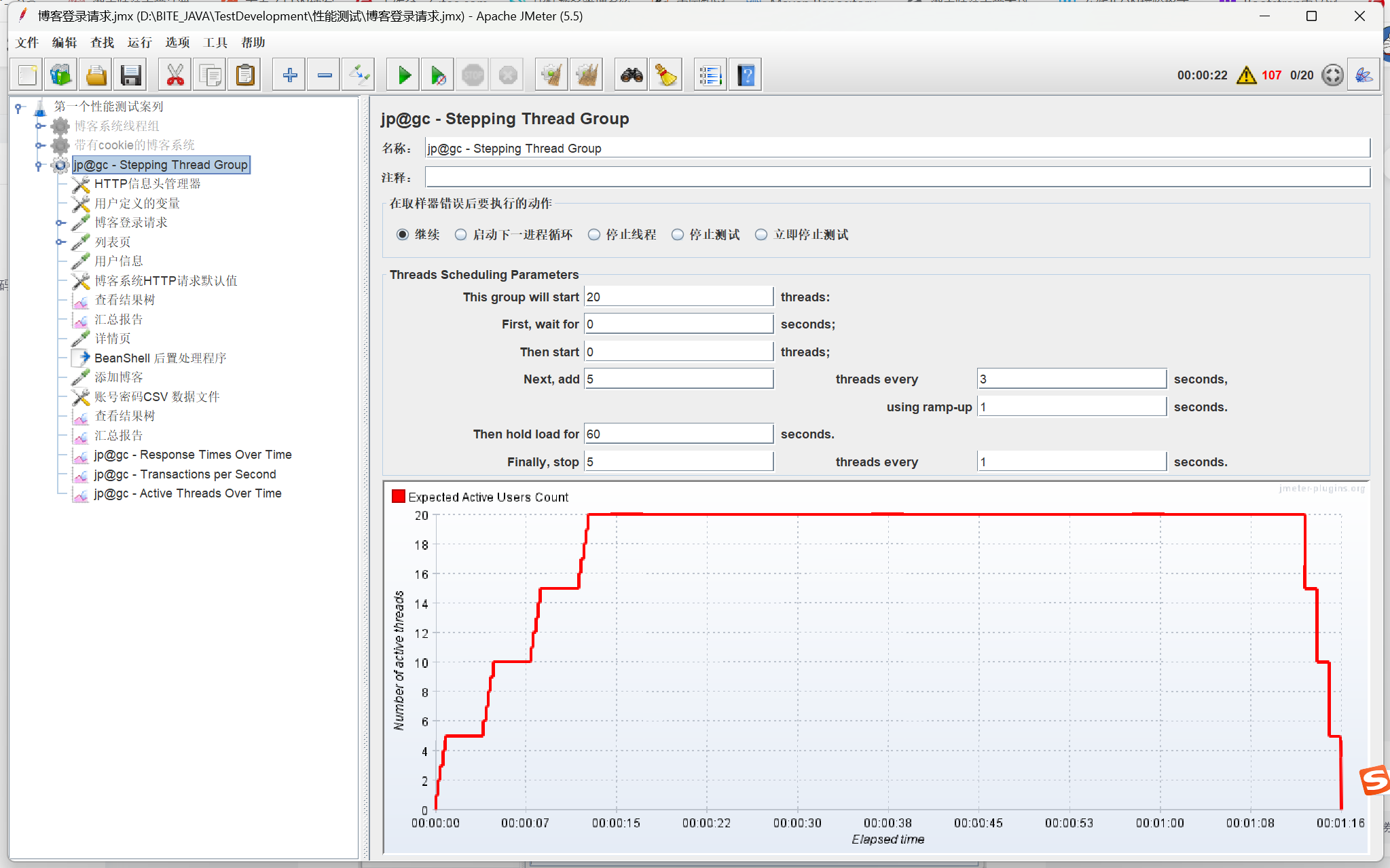

Jmeter测试

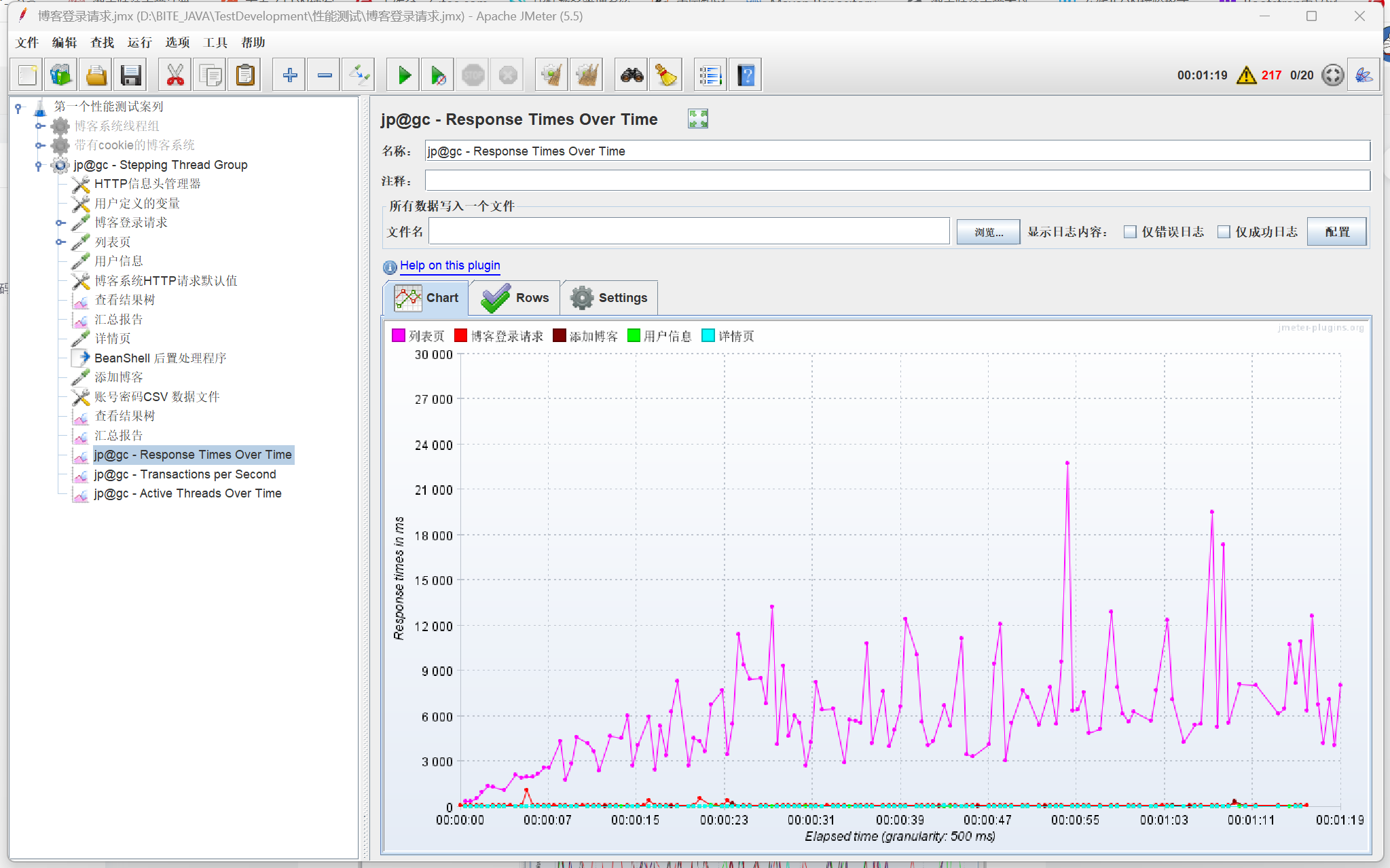

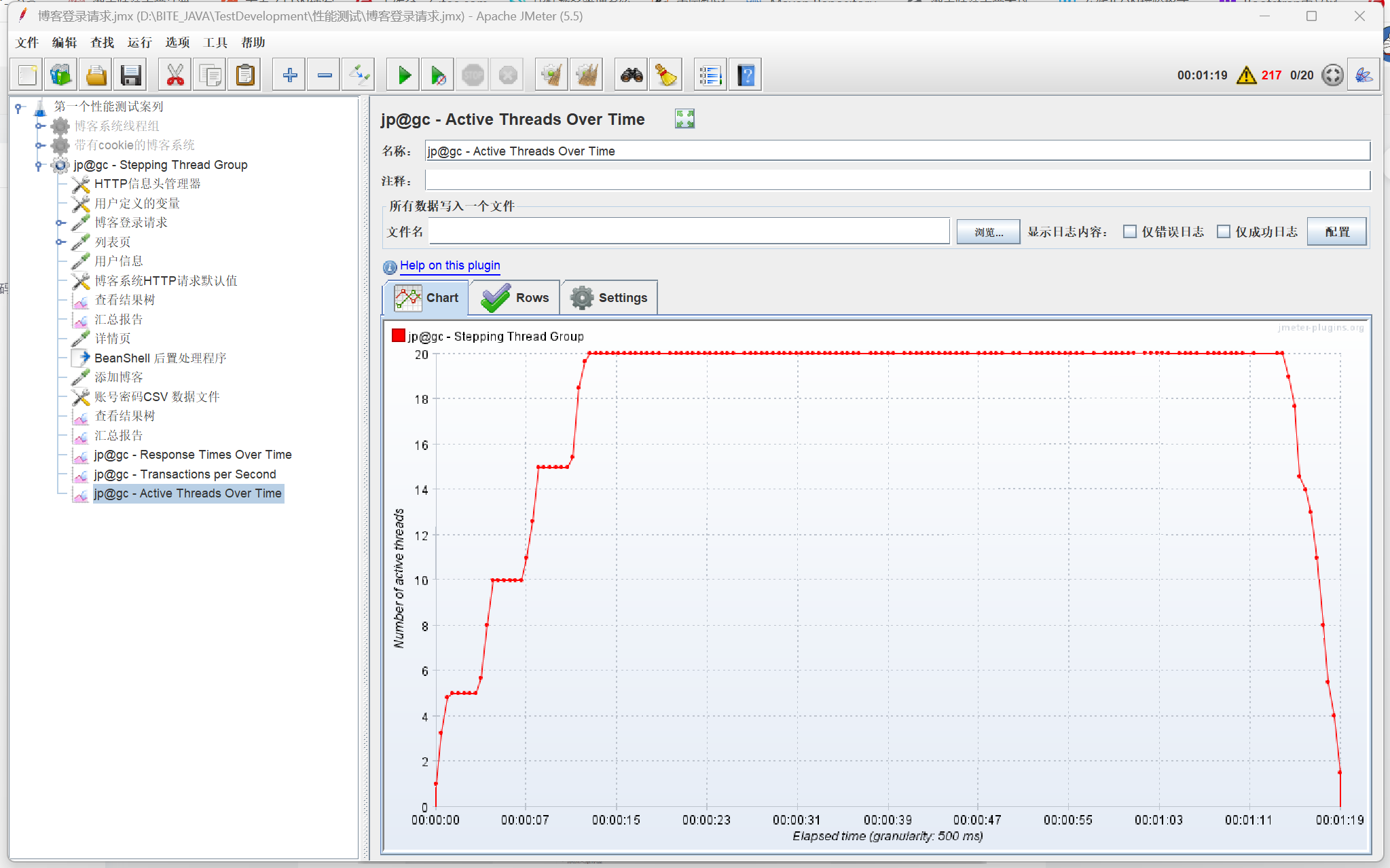

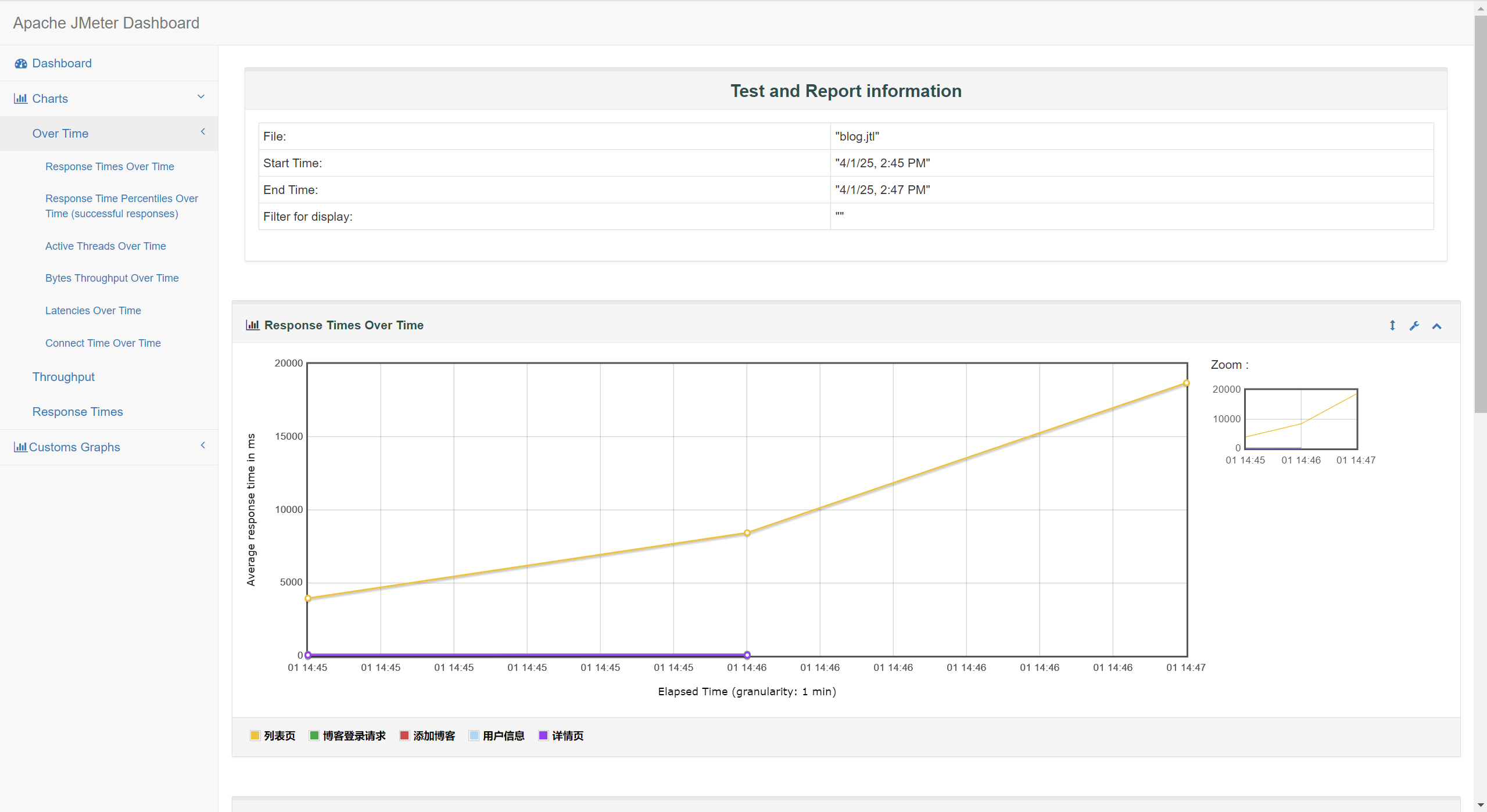

性能测试报告
cmd参考运行命令: jmeter -n -t 博客登录请求.jmx -l blog.jtl -e -o ./blog/.
六.测试总结
1) 主功能测试通过，项目可以上线
2) 项目上线后高优观察线上数据，查看线上用户操作日志，及时跟进用户反馈。
