（二）RestAPI 毛子(Tags——子实体/异常处理/验证/Search/Sort功能)

---

---

项目地址

• 教程作者：
• 教程地址：

• 代码仓库地址：

• 所用到的框架和插件：

dbt
airflow

一、给Habit添加Tags

1.1 创建Tags

1. 创建一个新的HabitTags实体

• 该实体需要创建一个表，关联Habits和Tags

namespace DevHabit.Api.Entities;public sealed class HabitTag
{public string HabitId { get; set; }public string TagId { get; set; }public DateTime CreatedAtUtc { get; set; }
}

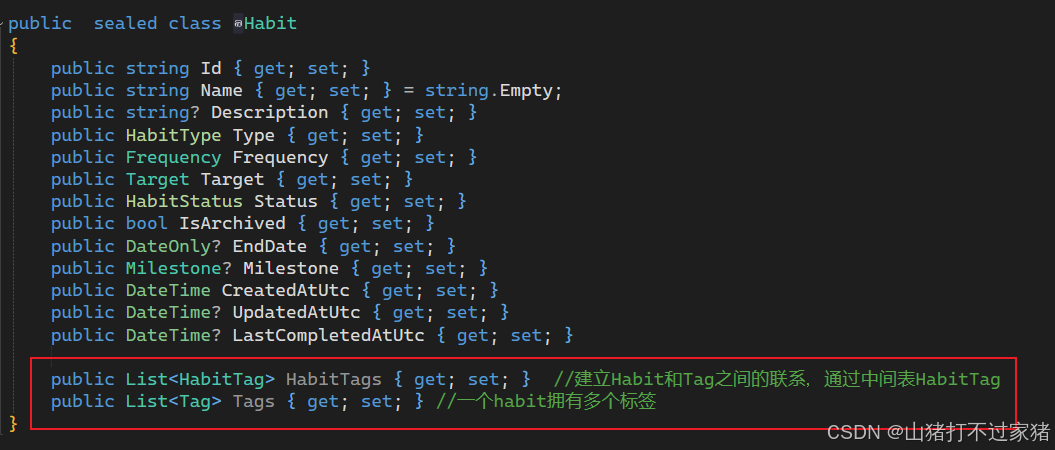

2. 设置Habit和Tags的关系

• 在Habit 的是实体里创建关系

3. 设置HabitTag表

• 添加HabitTagConfiguration.cs 配置文件

注意：这里Tag的WithMany()是空的原因是，暂时我们业务上不考虑通过Tag来找所有的Habits; 但是，Habit里面，我们建立了多对多关系，需要通过habit来找到所有的Tag

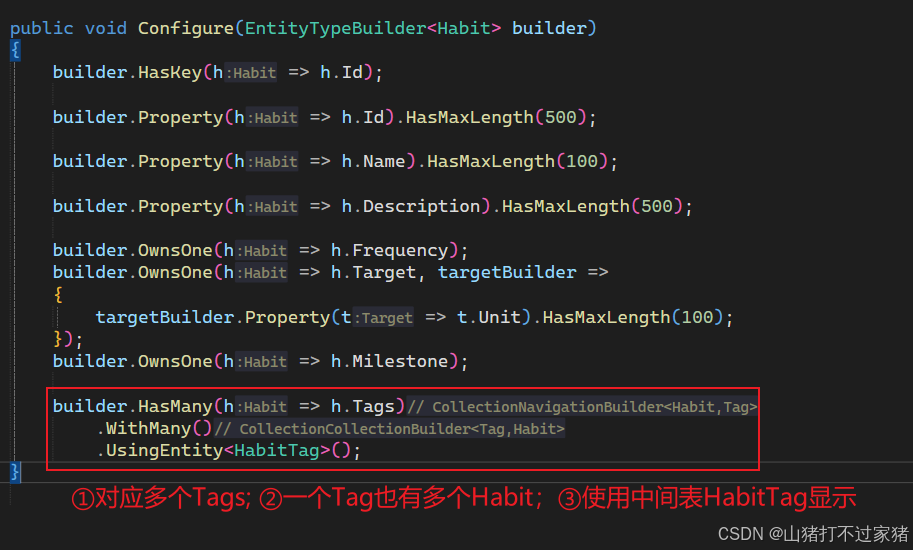

4. 在HabitConfiguration里配置

• 修改了Habit的实体，我们需要在HabitConfiguration里配置关系

5. 将表添加到EFCore里

• ApplicationDbContext.cs 里，添加新的表

public sealed class ApplicationDbContext(DbContextOptions<ApplicationDbContext> options) : DbContext(options)
{public DbSet<Habit> Habits { get; set; }public DbSet<Tag> Tags { get; set; }public DbSet<HabitTag> HabitTags { get; set; }protected override void OnModelCreating(ModelBuilder modelBuilder){modelBuilder.HasDefaultSchema(Schemas.Application);modelBuilder.ApplyConfigurationsFromAssembly(typeof(ApplicationDbContext).Assembly);}
}

6. 迁移数据

1. 在Api的Console里先输入add-migration add HabitTag
2. 换到docker环境，运行程序，自动执行

1.2 给Habit增加/修改标签

1. 创建UpsertHabitTagsDto

• 创建UpsertHabitTagsDto，用于处理前端传来的api数据

namespace DevHabit.Api.DTOs.HabitTags;public sealed record UpsertHabitTagsDto
{public required List<string> TagIds { get; init; }
}

2. 创建查询HabitWithTagsDto

• 用于查询单个habit后，显示该habit里的Tags

public sealed record HabitWithTagsDto
{public required string Id { get; init; }public required string Name { get; init; }public string? Description { get; init; }public required HabitType Type { get; init; }public required FrequencyDto Frequency { get; init; }public required TargetDto Target { get; init; }public required HabitStatus Status { get; init; }public required bool IsArchived { get; init; }public DateOnly? EndDate { get; init; }public MilestoneDto? Milestone { get; init; }public required DateTime CreatedAtUtc { get; init; }public DateTime? UpdatedAtUtc { get; init; }public DateTime? LastCompletedAtUtc { get; init; }public required string[] Tags { get; init; }
}

3. 创建HabitTagsController

• 该Controller用于给Habit 处理标签

    [HttpPut]public async Task<ActionResult> UpsertHabitTags(string habitId, UpsertHabitTagsDto upsertHabitTagsDto){Habit? habit = await dbContext.Habits.Include(h => h.HabitTags).FirstOrDefaultAsync(h => h.Id == habitId);if (habit is null){return NotFound();}var currentTagIds = habit.HabitTags.Select(ht => ht.TagId).ToHashSet();if (currentTagIds.SetEquals(upsertHabitTagsDto.TagIds)){return NoContent();}List<string> existingTagIds = await dbContext.Tags.Where(t => upsertHabitTagsDto.TagIds.Contains(t.Id)).Select(t => t.Id).ToListAsync();if (existingTagIds.Count != upsertHabitTagsDto.TagIds.Count){return BadRequest("One or more tag IDs is invalid");}habit.HabitTags.RemoveAll(ht => !upsertHabitTagsDto.TagIds.Contains(ht.TagId));string[] tagIdsToAdd = upsertHabitTagsDto.TagIds.Except(currentTagIds).ToArray();habit.HabitTags.AddRange(tagIdsToAdd.Select(tagId => new HabitTag{HabitId = habitId,TagId = tagId,CreatedAtUtc = DateTime.UtcNow}));await dbContext.SaveChangesAsync();return NoContent();}

代码解释：

1. 发起http://localhost:5000/habits/h_0195e900-3c05-7ee6-8b26-7ec6b367d66a/tags请求
2. 接收一个habitId以及 UpsertHabitTagsDto

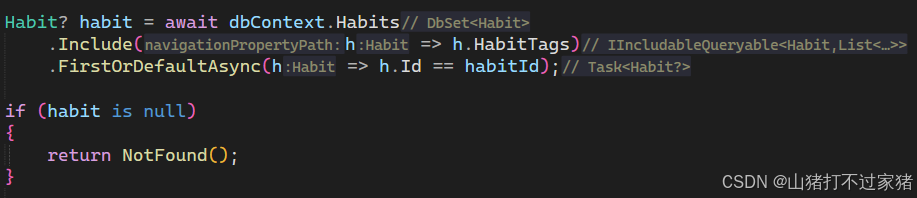

3. 根据Id从数据库查询该habit的数据

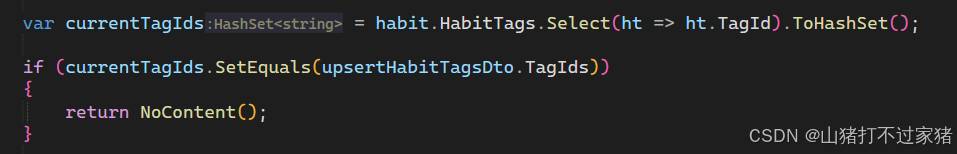

4. 查看是否有新增或者取消：通过数据库tags所有Id的hashSet和前端传来的进行对比，如果没有变化，则返回204

5. 排除非法habitId：查询Tags表的tagId和前端传来的Id进行对比，如果有不一样的，则报错

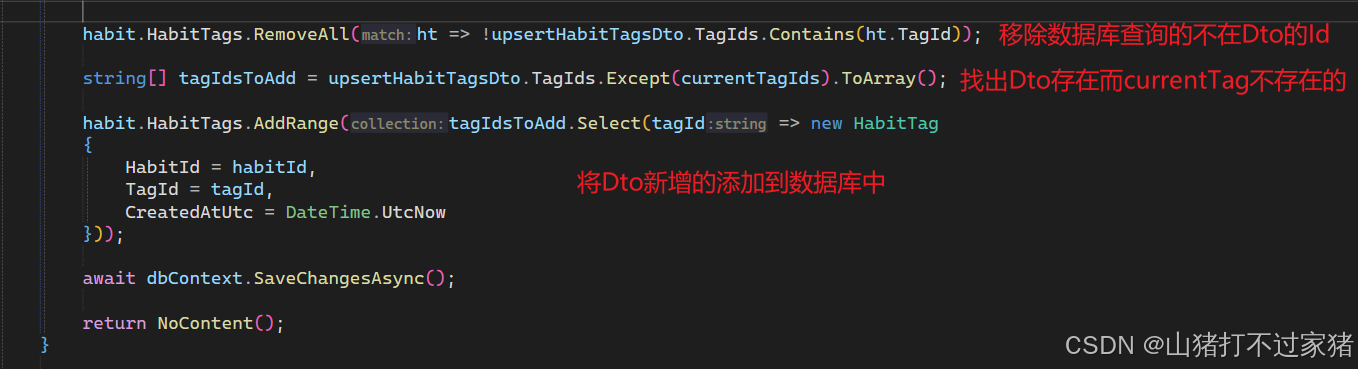

6. 删除Dto里取出的Tag，保存新增的Tags 完成upsert

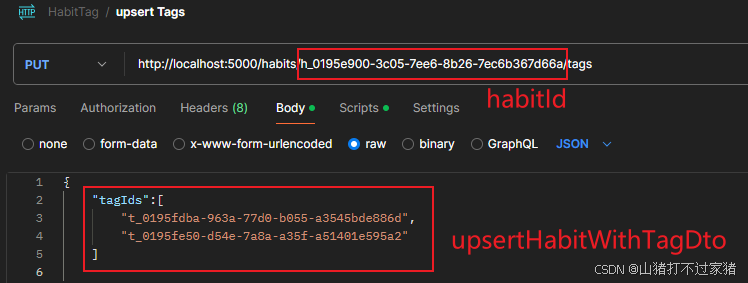

7. 发送请求更改Tag

1.3 使用Fluent API验证Create tag逻辑

1. 安装所需要的包

2. 注册服务

3. 添加CreateTagValidator

4. 使用validator

1.4 添加异常处理中间件

1. 创建全局异常处理中间件

• 该中间件的作用是，捕获所有未处理的异常，返回标准化错误。
  GlobalExceptionHandler.cs

namespace DevHabit.Api.Middleware;public sealed class GlobalExceptionHandler(IProblemDetailsService problemDetailsService) : IExceptionHandler
{public ValueTask<bool> TryHandleAsync(HttpContext httpContext,Exception exception,CancellationToken cancellationToken){return problemDetailsService.TryWriteAsync(new ProblemDetailsContext{HttpContext = httpContext,Exception = exception,ProblemDetails = new ProblemDetails{Title = "Internal Server Error",Detail = "An error occurred while processing your request. Please try again"}});}
}

2. 使用validator异常处理中间件

• 不使用全局的validator，每个错误我们都需要if判断，以及每次需要传递错误信息，导致错误不统一以及大量重复代码

• 创建中间件，统一所有的validator返回格式，以及状态码
  ValidationExceptionHandler.cs

public sealed class ValidationExceptionHandler(IProblemDetailsService problemDetailsService) : IExceptionHandler
{public async ValueTask<bool> TryHandleAsync(HttpContext httpContext,Exception exception,CancellationToken cancellationToken){if (exception is not ValidationException validationException){return false;}httpContext.Response.StatusCode = StatusCodes.Status400BadRequest;var context = new ProblemDetailsContext{HttpContext = httpContext,Exception = exception,ProblemDetails = new ProblemDetails{Detail = "One or more validation errors occurred",Status = StatusCodes.Status400BadRequest}};var errors = validationException.Errors.GroupBy(e => e.PropertyName).ToDictionary(g => g.Key.ToLowerInvariant(),g => g.Select(e => e.ErrorMessage).ToArray());context.ProblemDetails.Extensions.Add("errors", errors);return await problemDetailsService.TryWriteAsync(context);}
}

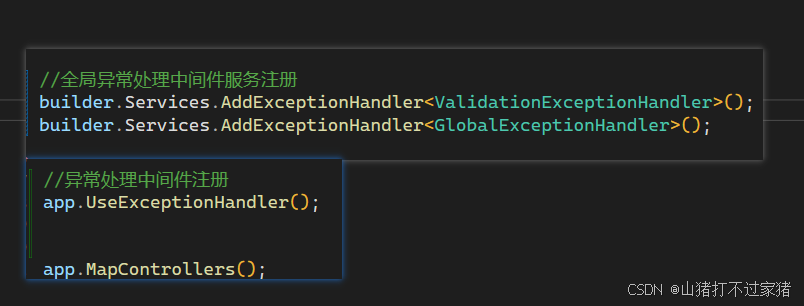

3. 注册服务以及中间件

program.cs

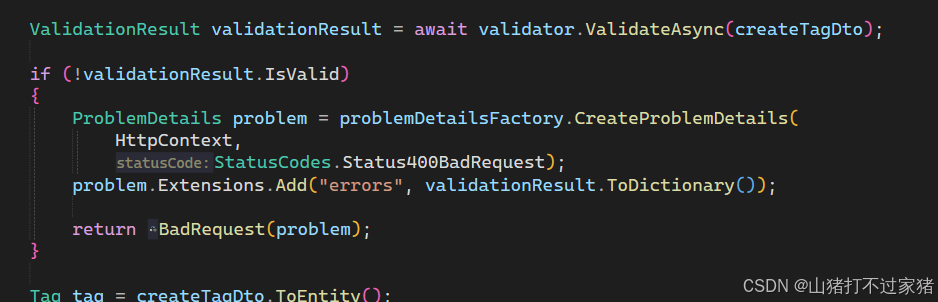

4. 修改原来的validator

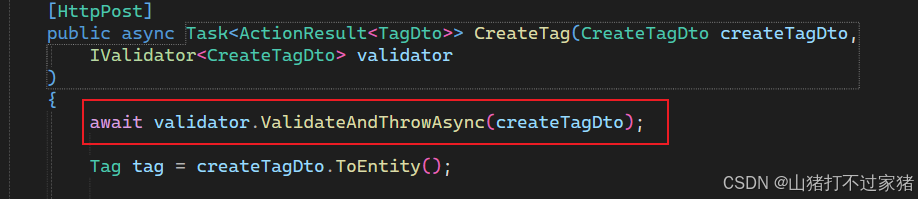

• 我们只需要验证即可，不需要在添加各种判断

二、添加searching/filter功能

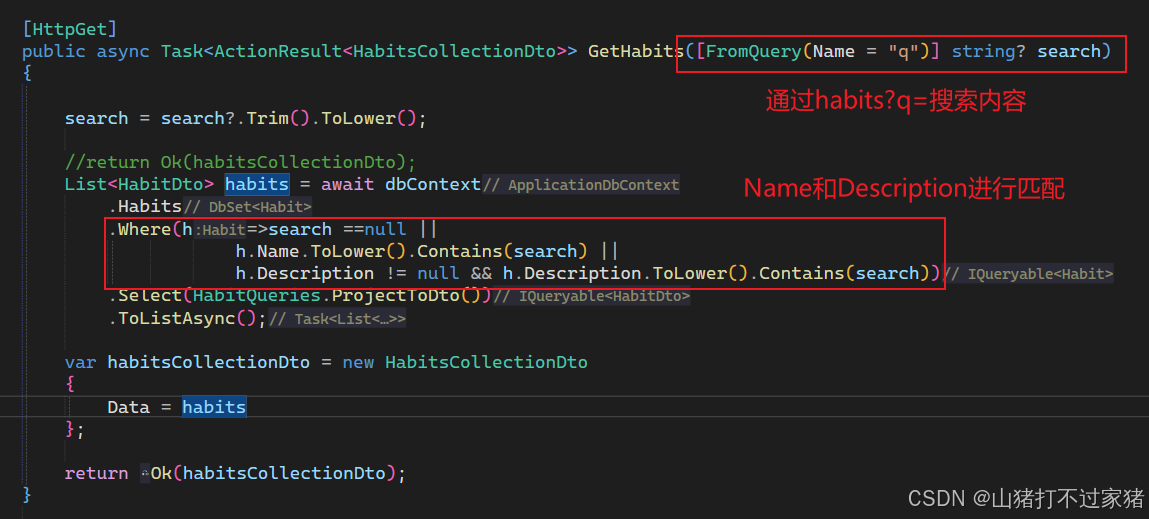

2.1 从GetHabit的Controller添加search功能

• 对Name和Descripion进行匹配

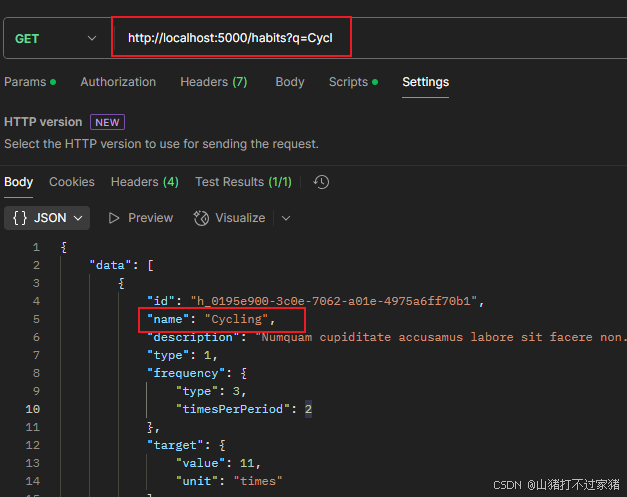

• 发起请求

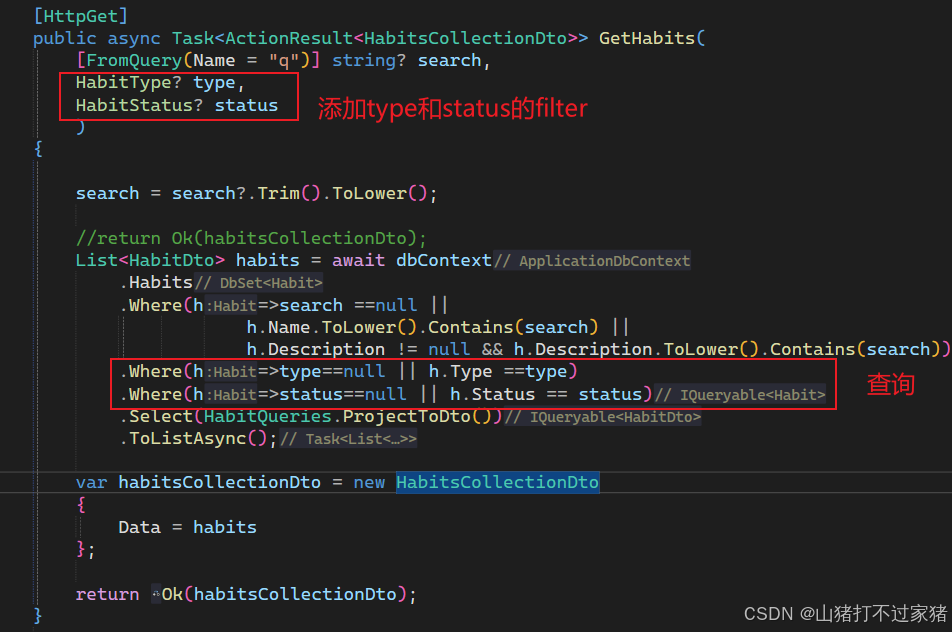

2.2 从GetHabit添加Filter

• 添加传入type类型和status

• 发起一个参数的请求：http://localhost:5000/habits?type=1
• 发起多个参数的请求：http://localhost:5000/habits?type=1&status=1

2.3 优化参数

• 上面的所有参数，我们都写在了controller里，如果参数多，会导致代码不好阅读
• 创建HabitsQueryParameters用来管理所有的Query
  HabitsQueryParameters.cs

public sealed record HabitsQueryParameters
{[FromQuery(Name = "q")]public string? Search { get; set; }public HabitType? Type { get; init; }public HabitStatus? Status { get; init; }
}

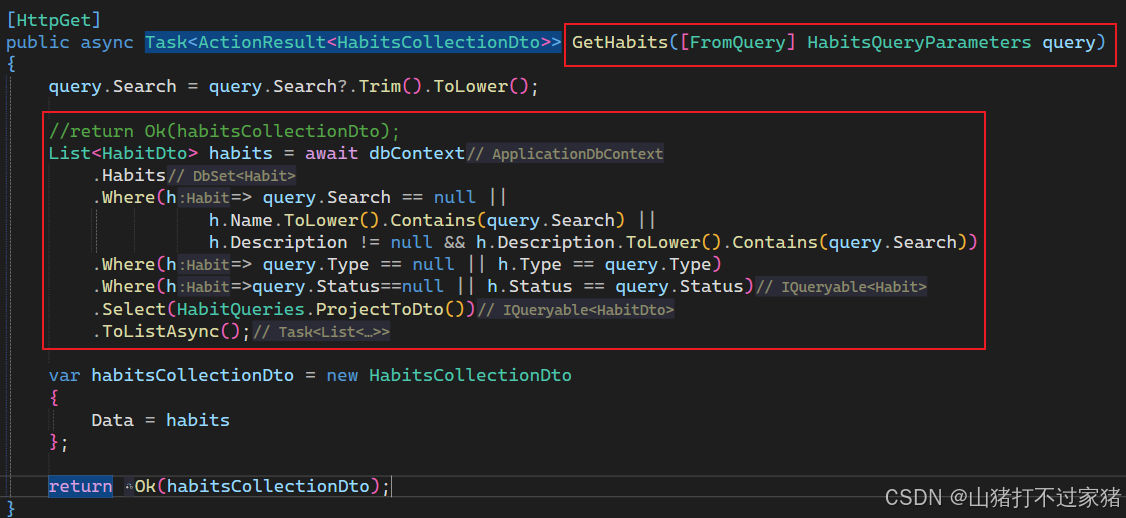

• 修改Controller

三、动态排序

• 使用功能：传递habits?sort=name desc,description自动进行排序

3.1 配置服务

1. 安装所需要的包System.Linq.Dynamic.Core
2. 在使用这个包的地方，添加该包引用

using System.Dynamic;

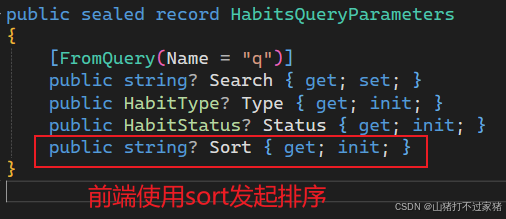

3. 在 HabitsQueryParameters类里，添加sort字段


3.2 创建sort服务

1. ISortMappingDefinition

• 提供Sort服务的接口，用于注册

namespace DevHabit.Api.Services.Sorting;public interface ISortMappingDefinition;

2.SortMappingDefinition

• 接口实现：

public sealed class SortMappingDefinition<TSource, TDestination> : ISortMappingDefinition
{public required SortMapping[] Mappings { get; init; }
}

• HabitMapping.cs里实现：前端Dto转为实体

    public static readonly SortMappingDefinition<HabitDto, Habit> SortMapping = new(){Mappings =[new SortMapping(nameof(HabitDto.Name), nameof(Habit.Name)),new SortMapping(nameof(HabitDto.Description), nameof(Habit.Description)),new SortMapping(nameof(HabitDto.Type), nameof(Habit.Type)),new SortMapping($"{nameof(HabitDto.Frequency)}.{nameof(FrequencyDto.Type)}",$"{nameof(Habit.Frequency)}.{nameof(Frequency.Type)}"),new SortMapping($"{nameof(HabitDto.Frequency)}.{nameof(FrequencyDto.TimesPerPeriod)}",$"{nameof(Habit.Frequency)}.{nameof(Frequency.TimesPerPeriod)}"),new SortMapping($"{nameof(HabitDto.Target)}.{nameof(TargetDto.Value)}",$"{nameof(Habit.Target)}.{nameof(Target.Value)}"),new SortMapping($"{nameof(HabitDto.Target)}.{nameof(TargetDto.Unit)}",$"{nameof(Habit.Target)}.{nameof(Target.Unit)}"),new SortMapping(nameof(HabitDto.Status), nameof(Habit.Status)),new SortMapping(nameof(HabitDto.EndDate), nameof(Habit.EndDate)),new SortMapping(nameof(HabitDto.CreatedAtUtc), nameof(Habit.CreatedAtUtc)),new SortMapping(nameof(HabitDto.UpdatedAtUtc), nameof(Habit.UpdatedAtUtc)),new SortMapping(nameof(HabitDto.LastCompletedAtUtc), nameof(Habit.LastCompletedAtUtc))]};

3.SortMapping

• 服务方法

public sealed record SortMapping(string SortField, string PropertyName, bool Reverse = false);

4. SortMappingProvider

• 该方法主要有两个功能：
  1. 从SortMappingDefinition里找到字段映射
  2. 传入一个排序字符串，比如 “name asc, price desc”，会提取出排序字段名（name, price），然后检查这些字段是否在 GetMappings 返回的字段映射中存在。

public sealed class SortMappingProvider(IEnumerable<ISortMappingDefinition> sortMappingDefinitions)
{public SortMapping[] GetMappings<TSource, TDestination>(){SortMappingDefinition<TSource, TDestination>? sortMappingDefinition = sortMappingDefinitions.OfType<SortMappingDefinition<TSource, TDestination>>().FirstOrDefault();if (sortMappingDefinition is null){throw new InvalidOperationException($"The mapping from '{typeof(TSource).Name}' into'{typeof(TDestination).Name} isn't defined");}return sortMappingDefinition.Mappings;}public bool ValidateMappings<TSource, TDestination>(string? sort){if (string.IsNullOrWhiteSpace(sort)){return true;}var sortFields = sort.Split(',').Select(f => f.Trim().Split(' ')[0]).Where(f => !string.IsNullOrWhiteSpace(f)).ToList();SortMapping[] mapping = GetMappings<TSource, TDestination>();return sortFields.All(f => mapping.Any(m => m.SortField.Equals(f, StringComparison.OrdinalIgnoreCase)));}
}

5. QueryableExtensions

• 使用扩展方法，可以让任何 Queryable<T> 调用 ApplySort(...)，并根据前端传来的排序字符串，结合后端配置的字段映射，对查询数据进行动态排序

using System.Linq.Dynamic.Core;namespace DevHabit.Api.Services.Sorting;internal static class QueryableExtensions
{public static IQueryable<T> ApplySort<T>(this IQueryable<T> query,string? sort,SortMapping[] mappings,string defaultOrderBy = "Id"){if (string.IsNullOrWhiteSpace(sort)){return query.OrderBy(defaultOrderBy);}string[] sortFields = sort.Split(',').Select(s => s.Trim()).Where(s => !string.IsNullOrWhiteSpace(s)).ToArray();var orderByParts = new List<string>();foreach (string field in sortFields){(string sortField, bool isDescending) = ParseSortField(field);SortMapping mapping = mappings.First(m =>m.SortField.Equals(sortField, StringComparison.OrdinalIgnoreCase));string direction = (isDescending, mapping.Reverse) switch{(false, false) => "ASC",(false, true) => "DESC",(true, false) => "DESC",(true, true) => "ASC"};orderByParts.Add($"{mapping.PropertyName} {direction}");}string orderBy = string.Join(",", orderByParts);return query.OrderBy(orderBy);}private static (string SortField, bool IsDescending) ParseSortField(string field){string[] parts = field.Split(' ');string sortField = parts[0];bool isDescending = parts.Length > 1 &&parts[1].Equals("desc", StringComparison.OrdinalIgnoreCase);return (sortField, isDescending);}
}

3.3 在HabitMaping里添加具体需要排序的字段

3.4 在Program里注册服务

3.5 在Controller 使用服务GetHabits

3.6 发送请求

habits?sort=name desc,description
