论文阅读笔记:Denoising Diffusion Implicit Models (3)
0、快速访问
论文阅读笔记:Denoising Diffusion Implicit Models (1)
论文阅读笔记:Denoising Diffusion Implicit Models (2)
论文阅读笔记:Denoising Diffusion Implicit Models (3)
4、DDPM与DDIM的相同点与不同点
4.1、 相同点

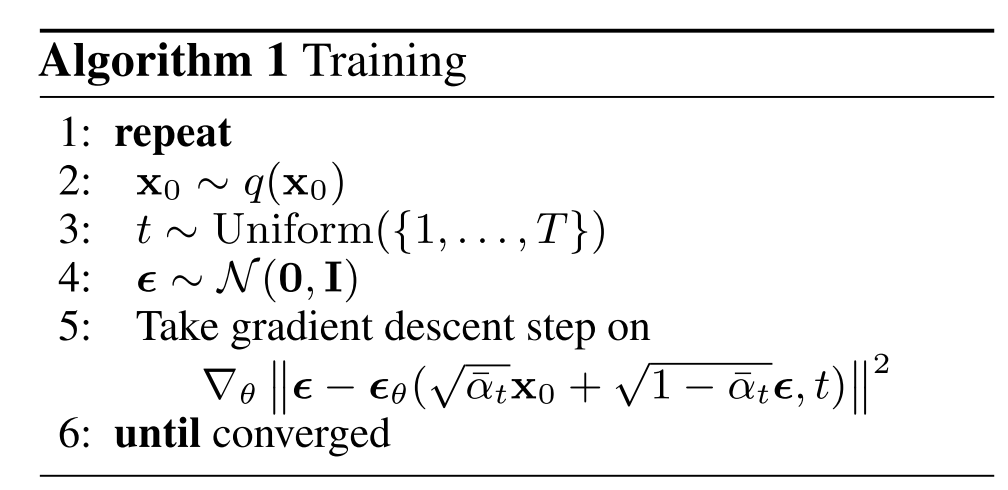

DDPM与DDIM的训练过程相同,因此DDPM训练的模型可以直接在DDIM当中使用,训练过程下所示
4.2、不同点
DDPM与DDIM在推理阶段是不同的。
DDPM在推理阶段的采样过程如下图所示。首先模型 ϵ θ \epsilon_\theta ϵθ预测出 x 0 → x t x_0\to x_t x0→xt所添加的噪音 ϵ t \epsilon_t ϵt,然后根据公式 ( x t − 1 − α t 1 − α ˉ t ⋅ ϵ t ) \Big(x_t-\frac{1-\alpha_t}{\sqrt{1-\bar{\alpha}_{t}}}\cdot \epsilon_t\Big) (xt−1−αˉt1−αt⋅ϵt)得到 x t − 1 x_{t-1} xt−1分布的均值,最后在均值上添加对应的噪音,得到 x t − 1 x_{t-1} xt−1
接下来介绍DDIM的采样过程。根据上文论文阅读笔记:Denoising Diffusion Implicit Models (2)中公式(2)所示的前向加噪过程可以得到下述公式(1)。
x t − 1 = α t − 1 ⋅ x 0 + 1 − α t − 1 − σ t 2 ⋅ x t − α t x 0 1 − α t + σ t 2 ϵ t ⏟ 标准高斯分布 = α t − 1 ⋅ x 0 + 1 − α t − 1 − σ t 2 ⋅ ( α t ⋅ x 0 + 1 − α t ⋅ z t ) − α t x 0 1 − α t + σ t 2 ϵ t = α t − 1 ⋅ x 0 + 1 − α t − 1 − σ t 2 ⋅ 1 − α t ⋅ z t 1 − α t + σ t 2 ϵ t = α t − 1 ⋅ x 0 + 1 − α t − 1 − σ t 2 ⋅ 1 − α t ⋅ z t 1 − α t + σ t 2 ϵ t = α t − 1 ⋅ x 0 ⏟ x 0 = x t − 1 − α t ⋅ z t α t + 1 − α t − 1 − σ t 2 ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t − 1 − α t ⋅ z t α t ⏟ 预测出 z t , 进而计算出 x 0 + 1 − α t − 1 − σ t 2 ⋅ z t + σ t 2 ϵ t \begin{equation} \begin{split} x_{t-1}&= \sqrt{\alpha_{t-1}}\cdot x_0+\sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot \frac{x_t-\sqrt{\alpha}_t x_0}{\sqrt{1-\alpha_t}} + \sigma_t^2 \underbrace{\epsilon_t}_{标准高斯分布} \\ &=\sqrt{\alpha_{t-1}}\cdot x_0+\sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot \frac{\bigg(\bcancel{\sqrt{\alpha_t}\cdot x_0}+\sqrt{1-\alpha_t}\cdot z_t \bigg)-\bcancel{\sqrt{\alpha}_t x_0}}{\sqrt{1-\alpha_t}} + \sigma_t^2 \epsilon_t \\ &= \sqrt{\alpha_{t-1}}\cdot x_0+\sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot \frac{\bcancel{\sqrt{1-\alpha_t}}\cdot z_t }{\bcancel{\sqrt{1-\alpha_t}}} + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot x_0+\sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot \frac{\bcancel{\sqrt{1-\alpha_t}}\cdot z_t }{\bcancel{\sqrt{1-\alpha_t}}} + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot \underbrace{x_0}_{x_0=\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}}+\sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot z_t + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot \underbrace{\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}}_{预测出z_t,进而计算出x_0}+\sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot z_t + \sigma_t^2 \epsilon_t \\ \end{split} \end{equation} xt−1=αt−1⋅x0+1−αt−1−σt2⋅1−αtxt−αtx0+σt2标准高斯分布 ϵt=αt−1⋅x0+1−αt−1−σt2⋅1−αt(αt⋅x0 +1−αt⋅zt)−αtx0 +σt2ϵt=αt−1⋅x0+1−αt−1−σt2⋅1−αt 1−αt ⋅zt+σt2ϵt=αt−1⋅x0+1−αt−1−σt2⋅1−αt 1−αt ⋅zt+σt2ϵt=αt−1⋅x0=αtxt−1−αt⋅zt x0+1−αt−1−σt2⋅zt+σt2ϵt=αt−1⋅预测出zt,进而计算出x0 αtxt−1−αt⋅zt+1−αt−1−σt2⋅zt+σt2ϵt
得到的公式(1)就是推断过程的采样过程。在这种采样过程下,可以实现跳步。
公式(1)中的 σ t \sigma_t σt是可以自己定义的量。有两种特殊的情况:
1、 σ t 2 = 0 \sigma_t^2=0 σt2=0:此时, x t − 1 x_{t-1} xt−1满足公式(2)
x t − 1 = α t − 1 ⋅ x t − 1 − α t ⋅ z t α t + 1 − α t − 1 − σ t 2 ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x 0 + 1 − α t − 1 ⋅ z t \begin{equation} \begin{split} x_{t-1}&=\sqrt{\alpha_{t-1}}\cdot\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}+\sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot z_t + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot x_0+\sqrt{1-\alpha_{t-1}}\cdot z_t \\ \end{split} \end{equation} xt−1=αt−1⋅αtxt−1−αt⋅zt+1−αt−1−σt2⋅zt+σt2ϵt=αt−1⋅x0+1−αt−1⋅zt
可以看出,此时, x t − 1 x_{t-1} xt−1退化成上文论文阅读笔记:Denoising Diffusion Implicit Models (2)中的Lemma 1.
2、 σ t 2 = 1 − α t − 1 1 − α t ⋅ ( 1 − α t α t − 1 ) \sigma_t^2=\frac{1-\alpha_{t-1}}{1-\alpha_t}\cdot (1-\frac{\alpha_t}{\alpha_{t-1}}) σt2=1−αt1−αt−1⋅(1−αt−1αt):此时, x t − 1 x_{t-1} xt−1满足公式(3)
x t − 1 = α t − 1 ⋅ x t − 1 − α t ⋅ z t α t + 1 − α t − 1 − σ t 2 ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t − 1 − α t ⋅ z t α t + 1 − α t − 1 − 1 − α t − 1 1 − α t ⋅ ( 1 − α t α t − 1 ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t − 1 − α t ⋅ z t α t + ( 1 − α t − 1 ) ( 1 − 1 1 − α t ⋅ α t − 1 − α t α t − 1 ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t − 1 − α t ⋅ z t α t + ( 1 − α t − 1 ) α t − 1 − α t − 1 ⋅ α t − α t − 1 + α t α t − 1 ⋅ ( 1 − α t ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t − 1 − α t ⋅ z t α t + ( 1 − α t − 1 ) − α t − 1 ⋅ α t + α t α t − 1 ⋅ ( 1 − α t ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t − 1 − α t ⋅ z t α t + ( 1 − α t − 1 ) α t α t − 1 ⋅ ( 1 − α t ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t α t − α t − 1 1 − α t ⋅ z t α t + ( 1 − α t − 1 ) α t α t − 1 ⋅ ( 1 − α t ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t α t − ( α t − 1 1 − α t ⋅ α t − 1 1 − α t − ( 1 − α t − 1 ) ⋅ α t ⋅ α t α t ⋅ α t − 1 ⋅ ( 1 − α t ) ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t α t − ( α t − 1 1 − α t ⋅ α t − 1 1 − α t − ( 1 − α t − 1 ) ⋅ α t ⋅ α t α t ⋅ α t − 1 ⋅ ( 1 − α t ) ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t α t − ( α t − 1 ⋅ ( 1 − α t ) − ( 1 − α t − 1 ) ⋅ α t α t ⋅ α t − 1 ⋅ ( 1 − α t ) ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t α t − ( α t − 1 − α t ⋅ α t − 1 − α t + α t ⋅ α t − 1 α t ⋅ α t − 1 ⋅ ( 1 − α t ) ) ⋅ z t = α t − 1 ⋅ x t α t − ( α t − 1 − α t α t ⋅ α t − 1 ⋅ ( 1 − α t ) ) ⋅ z t + σ t 2 ϵ t = α t − 1 ⋅ x t α t − ( α t − 1 ⋅ ( α t − 1 − α t ) α t − 1 ⋅ α t ⋅ ( 1 − α t ) ) ⋅ z t + σ t 2 ϵ t = α t − 1 α t ( x t − α t − 1 − α t α t − 1 ⋅ 1 − α t ) + σ t 2 ϵ t = α t − 1 α t ( x t − 1 1 − α t ⋅ ( 1 − α t α t − 1 ) ) ⋅ z t + σ t 2 ϵ t = 1 α t ( x t − β t 1 − α ˉ t ) ⋅ z t + σ t 2 ϵ t (换成 D D P M 中的符号) \begin{equation} \begin{split} x_{t-1}&=\sqrt{\alpha_{t-1}}\cdot\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}+\sqrt{1-\alpha_{t-1}-\sigma_t^2}\cdot z_t + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}+\sqrt{1-\alpha_{t-1}-\frac{1-\alpha_{t-1}}{1-\alpha_t}\cdot (1-\frac{\alpha_t}{\alpha_{t-1}})}\cdot z_t + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}+\sqrt{(1-\alpha_{t-1})(1-\frac{1}{1-\alpha_t}\cdot \frac{\alpha_{t-1}-\alpha_t}{\alpha_{t-1}})}\cdot z_t + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}+\sqrt{(1-\alpha_{t-1})\frac{\alpha_{t-1}-\alpha_{t-1}\cdot \alpha_{t}-\alpha_{t-1}+\alpha_t}{\alpha_{t-1}\cdot(1-\alpha_{t})}}\cdot z_t + \sigma_t^2 \epsilon_t\\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}+\sqrt{(1-\alpha_{t-1})\frac{-\alpha_{t-1}\cdot \alpha_{t}+\alpha_t}{\alpha_{t-1}\cdot(1-\alpha_{t})}}\cdot z_t + \sigma_t^2 \epsilon_t\\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t-{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}+(1-\alpha_{t-1})\sqrt{\frac{\alpha_t}{\alpha_{t-1}\cdot(1-\alpha_{t})}}\cdot z_t + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t}{\sqrt{\alpha_t}}-\frac{\sqrt{\alpha_{t-1}}{\sqrt{1-\alpha_t}\cdot z_t}}{\sqrt{\alpha_t}}+(1-\alpha_{t-1})\sqrt{\frac{\alpha_t}{\alpha_{t-1}\cdot(1-\alpha_{t})}}\cdot z_t + \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t}{\sqrt{\alpha_t}} -\Bigg(\frac{\sqrt{\alpha_{t-1}}{\sqrt{1-\alpha_t}}\cdot\sqrt{\alpha_{t-1}}{\sqrt{1-\alpha_t}}-(1-\alpha_{t-1})\cdot\sqrt{\alpha_t}\cdot\sqrt{\alpha_t}}{\sqrt{\alpha_t}\cdot \sqrt{\alpha_{t-1}\cdot(1-\alpha_t)}} \Bigg)\cdot z_t+ \sigma_t^2 \epsilon_t \\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t}{\sqrt{\alpha_t}} -\Bigg(\frac{\sqrt{\alpha_{t-1}}{\sqrt{1-\alpha_t}}\cdot\sqrt{\alpha_{t-1}}{\sqrt{1-\alpha_t}}-(1-\alpha_{t-1})\cdot\sqrt{\alpha_t}\cdot\sqrt{\alpha_t}}{\sqrt{\alpha_t}\cdot \sqrt{\alpha_{t-1}\cdot(1-\alpha_t)}}\Bigg)\cdot z_t + \sigma_t^2 \epsilon_t\\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t}{\sqrt{\alpha_t}} -\Bigg(\frac{\alpha_{t-1}\cdot({1-\alpha_t)}-(1-\alpha_{t-1})\cdot \alpha_t}{\sqrt{\alpha_t}\cdot \sqrt{\alpha_{t-1}\cdot(1-\alpha_t)}} \Bigg)\cdot z_t + \sigma_t^2 \epsilon_t\\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t}{\sqrt{\alpha_t}} -\Bigg(\frac{\alpha_{t-1}-\bcancel{\alpha_t\cdot \alpha_{t-1}}-\alpha_t+\bcancel{\alpha_t\cdot \alpha_{t-1}}}{\sqrt{\alpha_t}\cdot \sqrt{\alpha_{t-1}\cdot(1-\alpha_t)}} \Bigg)\cdot z_t \\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t}{\sqrt{\alpha_t}} -\Bigg(\frac{\alpha_{t-1}-\alpha_t}{\sqrt{\alpha_t}\cdot \sqrt{\alpha_{t-1}\cdot(1-\alpha_t)}} \Bigg)\cdot z_t + \sigma_t^2 \epsilon_t\\ &=\sqrt{\alpha_{t-1}}\cdot\frac{x_t}{\sqrt{\alpha_t}} -\Bigg(\frac{\sqrt{\alpha_{t-1}}\cdot (\alpha_{t-1}-\alpha_t)}{\alpha_{t-1}\cdot\sqrt{\alpha_t}\cdot \sqrt{(1-\alpha_t)}} \Bigg)\cdot z_t + \sigma_t^2 \epsilon_t\\ &=\frac{\sqrt{\alpha_{t-1}}}{\sqrt{\alpha_{t}}}\Bigg(x_t-\frac{\alpha_{t-1}-\alpha_t}{\alpha_{t-1}\cdot\ \sqrt{1-\alpha_t}}\Bigg) + \sigma_t^2 \epsilon_t\\ &=\frac{\sqrt{\alpha_{t-1}}}{\sqrt{\alpha_{t}}}\Bigg(x_t-\frac{1}{\ \sqrt{1-\alpha_t}}\cdot (1-\frac{\alpha_t}{\alpha_{t-1}})\Bigg)\cdot z_t + \sigma_t^2 \epsilon_t\\ &=\frac{1}{\sqrt{\alpha_{t}}}\Bigg(x_t-\frac{\beta_t}{\ \sqrt{1-\bar\alpha_t}}\Bigg)\cdot z_t + \sigma_t^2 \epsilon_t(换成DDPM中的符号)\\ \end{split} \end{equation} xt−1=αt−1⋅αtxt−1−αt⋅zt+1−αt−1−σt2⋅zt+σt2ϵt=αt−1⋅αtxt−1−αt⋅zt+1−αt−1−1−αt1−αt−1⋅(1−αt−1αt)⋅zt+σt2ϵt=αt−1⋅αtxt−1−αt⋅zt+(1−αt−1)(1−1−αt1⋅αt−1αt−1−αt)⋅zt+σt2ϵt=αt−1⋅αtxt−1−αt⋅zt+(1−αt−1)αt−1⋅(1−αt)αt−1−αt−1⋅αt−αt−1+αt⋅zt+σt2ϵt=αt−1⋅αtxt−1−αt⋅zt+(1−αt−1)αt−1⋅(1−αt)−αt−1⋅αt+αt⋅zt+σt2ϵt=αt−1⋅αtxt−1−αt⋅zt+(1−αt−1)αt−1⋅(1−αt)αt⋅zt+σt2ϵt=αt−1⋅αtxt−αtαt−11−αt⋅zt+(1−αt−1)αt−1⋅(1−αt)αt⋅zt+σt2ϵt=αt−1⋅αtxt−(αt⋅αt−1⋅(1−αt)αt−11−αt⋅αt−11−αt−(1−αt−1)⋅αt⋅αt)⋅zt+σt2ϵt=αt−1⋅αtxt−(αt⋅αt−1⋅(1−αt)αt−11−αt⋅αt−11−αt−(1−αt−1)⋅αt⋅αt)⋅zt+σt2ϵt=αt−1⋅αtxt−(αt⋅αt−1⋅(1−αt)αt−1⋅(1−αt)−(1−αt−1)⋅αt)⋅zt+σt2ϵt=αt−1⋅αtxt−(αt⋅αt−1⋅(1−αt)αt−1−αt⋅αt−1 −αt+αt⋅αt−1 )⋅zt=αt−1⋅αtxt−(αt⋅αt−1⋅(1−αt)αt−1−αt)⋅zt+σt2ϵt=αt−1⋅αtxt−(αt−1⋅αt⋅(1−αt)αt−1⋅(αt−1−αt))⋅zt+σt2ϵt=αtαt−1(xt−αt−1⋅ 1−αtαt−1−αt)+σt2ϵt=αtαt−1(xt− 1−αt1⋅(1−αt−1αt))⋅zt+σt2ϵt=αt1(xt− 1−αˉtβt)⋅zt+σt2ϵt(换成DDPM中的符号)
可以看出,此时,DDIM退化成了DDPM。
5、代码
class DDIMPipeline(DiffusionPipeline):model_cpu_offload_seq = "unet"def __init__(self, unet, scheduler):super().__init__()# make sure scheduler can always be converted to DDIMscheduler = DDIMScheduler.from_config(scheduler.config)self.register_modules(unet=unet, scheduler=scheduler)@torch.no_grad()def __call__(self,batch_size: int = 1,generator: Optional[Union[torch.Generator, List[torch.Generator]]] = None,eta: float = 0.0,num_inference_steps: int = 50,use_clipped_model_output: Optional[bool] = None,output_type: Optional[str] = "pil",return_dict: bool = True,) -> Union[ImagePipelineOutput, Tuple]:# Sample gaussian noise to begin loopif isinstance(self.unet.config.sample_size, int):image_shape = (batch_size,self.unet.config.in_channels,self.unet.config.sample_size,self.unet.config.sample_size,)else:image_shape = (batch_size, self.unet.config.in_channels, *self.unet.config.sample_size)if isinstance(generator, list) and len(generator) != batch_size:raise ValueError(f"You have passed a list of generators of length {len(generator)}, but requested an effective batch"f" size of {batch_size}. Make sure the batch size matches the length of the generators.")# 随即生成噪音image = randn_tensor(image_shape, generator=generator, device=self._execution_device, dtype=self.unet.dtype)# 设置步数间隔。例如num_inference_steps = 50,然而总步长为1000,那么就是每次跳20步,例如在当前时刻, timestep=980, prev_timestep=960self.scheduler.set_timesteps(num_inference_steps)for t in self.progress_bar(self.scheduler.timesteps):# 1. 预测出timestep=980时刻对应噪音model_output = self.unet(image, t).sample# 2. 调用scheduler的方法step,执行公式()得到prev_timestep=960时刻的图像image = self.scheduler.step(model_output, t, image, eta=eta, use_clipped_model_output=use_clipped_model_output, generator=generator).prev_sampleimage = (image / 2 + 0.5).clamp(0, 1)image = image.cpu().permute(0, 2, 3, 1).numpy()if output_type == "pil":image = self.numpy_to_pil(image)if not return_dict:return (image,)return ImagePipelineOutput(images=image)class DDIMScheduler(SchedulerMixin, ConfigMixin):_compatibles = [e.name for e in KarrasDiffusionSchedulers]order = 1@register_to_configdef __init__(self,num_train_timesteps: int = 1000,beta_start: float = 0.0001,beta_end: float = 0.02,beta_schedule: str = "linear",trained_betas: Optional[Union[np.ndarray, List[float]]] = None,clip_sample: bool = True,set_alpha_to_one: bool = True,steps_offset: int = 0,prediction_type: str = "epsilon",thresholding: bool = False,dynamic_thresholding_ratio: float = 0.995,clip_sample_range: float = 1.0,sample_max_value: float = 1.0,timestep_spacing: str = "leading",rescale_betas_zero_snr: bool = False,):if trained_betas is not None:self.betas = torch.tensor(trained_betas, dtype=torch.float32)elif beta_schedule == "linear":self.betas = torch.linspace(beta_start, beta_end, num_train_timesteps, dtype=torch.float32)elif beta_schedule == "scaled_linear":# this schedule is very specific to the latent diffusion model.self.betas = torch.linspace(beta_start**0.5, beta_end**0.5, num_train_timesteps, dtype=torch.float32) ** 2elif beta_schedule == "squaredcos_cap_v2":# Glide cosine scheduleself.betas = betas_for_alpha_bar(num_train_timesteps)else:raise NotImplementedError(f"{beta_schedule} is not implemented for {self.__class__}")# Rescale for zero SNRif rescale_betas_zero_snr:self.betas = rescale_zero_terminal_snr(self.betas)self.alphas = 1.0 - self.betasself.alphas_cumprod = torch.cumprod(self.alphas, dim=0)# At every step in ddim, we are looking into the previous alphas_cumprod# For the final step, there is no previous alphas_cumprod because we are already at 0# `set_alpha_to_one` decides whether we set this parameter simply to one or# whether we use the final alpha of the "non-previous" one.self.final_alpha_cumprod = torch.tensor(1.0) if set_alpha_to_one else self.alphas_cumprod[0]# standard deviation of the initial noise distributionself.init_noise_sigma = 1.0# setable valuesself.num_inference_steps = Noneself.timesteps = torch.from_numpy(np.arange(0, num_train_timesteps)[::-1].copy().astype(np.int64))def scale_model_input(self, sample: torch.Tensor, timestep: Optional[int] = None) -> torch.Tensor:"""Ensures interchangeability with schedulers that need to scale the denoising model input depending on thecurrent timestep.Args:sample (`torch.Tensor`):The input sample.timestep (`int`, *optional*):The current timestep in the diffusion chain.Returns:`torch.Tensor`:A scaled input sample."""return sampledef _get_variance(self, timestep, prev_timestep):alpha_prod_t = self.alphas_cumprod[timestep]alpha_prod_t_prev = self.alphas_cumprod[prev_timestep] if prev_timestep >= 0 else self.final_alpha_cumprodbeta_prod_t = 1 - alpha_prod_tbeta_prod_t_prev = 1 - alpha_prod_t_prevvariance = (beta_prod_t_prev / beta_prod_t) * (1 - alpha_prod_t / alpha_prod_t_prev)return variance# Copied from diffusers.schedulers.scheduling_ddpm.DDPMScheduler._threshold_sampledef _threshold_sample(self, sample: torch.Tensor) -> torch.Tensor:""""Dynamic thresholding: At each sampling step we set s to a certain percentile absolute pixel value in xt0 (theprediction of x_0 at timestep t), and if s > 1, then we threshold xt0 to the range [-s, s] and then divide bys. Dynamic thresholding pushes saturated pixels (those near -1 and 1) inwards, thereby actively preventingpixels from saturation at each step. We find that dynamic thresholding results in significantly betterphotorealism as well as better image-text alignment, especially when using very large guidance weights."https://arxiv.org/abs/2205.11487"""dtype = sample.dtypebatch_size, channels, *remaining_dims = sample.shapeif dtype not in (torch.float32, torch.float64):sample = sample.float() # upcast for quantile calculation, and clamp not implemented for cpu half# Flatten sample for doing quantile calculation along each imagesample = sample.reshape(batch_size, channels * np.prod(remaining_dims))abs_sample = sample.abs() # "a certain percentile absolute pixel value"s = torch.quantile(abs_sample, self.config.dynamic_thresholding_ratio, dim=1)s = torch.clamp(s, min=1, max=self.config.sample_max_value) # When clamped to min=1, equivalent to standard clipping to [-1, 1]s = s.unsqueeze(1) # (batch_size, 1) because clamp will broadcast along dim=0sample = torch.clamp(sample, -s, s) / s # "we threshold xt0 to the range [-s, s] and then divide by s"sample = sample.reshape(batch_size, channels, *remaining_dims)sample = sample.to(dtype)return sampledef set_timesteps(self, num_inference_steps: int, device: Union[str, torch.device] = None):"""Sets the discrete timesteps used for the diffusion chain (to be run before inference).Args:num_inference_steps (`int`):The number of diffusion steps used when generating samples with a pre-trained model."""if num_inference_steps > self.config.num_train_timesteps:raise ValueError(f"`num_inference_steps`: {num_inference_steps} cannot be larger than `self.config.train_timesteps`:"f" {self.config.num_train_timesteps} as the unet model trained with this scheduler can only handle"f" maximal {self.config.num_train_timesteps} timesteps.")self.num_inference_steps = num_inference_steps# "linspace", "leading", "trailing" corresponds to annotation of Table 2. of https://arxiv.org/abs/2305.08891if self.config.timestep_spacing == "linspace":timesteps = (np.linspace(0, self.config.num_train_timesteps - 1, num_inference_steps).round()[::-1].copy().astype(np.int64))elif self.config.timestep_spacing == "leading":step_ratio = self.config.num_train_timesteps // self.num_inference_steps# creates integer timesteps by multiplying by ratio# casting to int to avoid issues when num_inference_step is power of 3timesteps = (np.arange(0, num_inference_steps) * step_ratio).round()[::-1].copy().astype(np.int64)timesteps += self.config.steps_offsetelif self.config.timestep_spacing == "trailing":step_ratio = self.config.num_train_timesteps / self.num_inference_steps# creates integer timesteps by multiplying by ratio# casting to int to avoid issues when num_inference_step is power of 3timesteps = np.round(np.arange(self.config.num_train_timesteps, 0, -step_ratio)).astype(np.int64)timesteps -= 1else:raise ValueError(f"{self.config.timestep_spacing} is not supported. Please make sure to choose one of 'leading' or 'trailing'.")self.timesteps = torch.from_numpy(timesteps).to(device)def step(self,model_output: torch.Tensor,timestep: int,sample: torch.Tensor,eta: float = 0.0,use_clipped_model_output: bool = False,generator=None,variance_noise: Optional[torch.Tensor] = None,return_dict: bool = True,) -> Union[DDIMSchedulerOutput, Tuple]:if self.num_inference_steps is None:raise ValueError("Number of inference steps is 'None', you need to run 'set_timesteps' after creating the scheduler")# 1. get previous step value (=t-1);# timestep=980,self.config.num_train_timesteps=1000, self.num_inference_steps=50# prev_timestep = 960,步数的跳跃间隔为20prev_timestep = timestep - self.config.num_train_timesteps // self.num_inference_steps# 2. compute alphas, betasalpha_prod_t = self.alphas_cumprod[timestep]alpha_prod_t_prev = self.alphas_cumprod[prev_timestep] if prev_timestep >= 0 else self.final_alpha_cumprodbeta_prod_t = 1 - alpha_prod_t# 3. compute predicted original sample from predicted noise also called# "predicted x_0" of formula (12) from https://arxiv.org/pdf/2010.02502.pdfif self.config.prediction_type == "epsilon":pred_original_sample = (sample - beta_prod_t ** (0.5) * model_output) / alpha_prod_t ** (0.5)pred_epsilon = model_outputelif self.config.prediction_type == "sample":pred_original_sample = model_outputpred_epsilon = (sample - alpha_prod_t ** (0.5) * pred_original_sample) / beta_prod_t ** (0.5)elif self.config.prediction_type == "v_prediction":pred_original_sample = (alpha_prod_t**0.5) * sample - (beta_prod_t**0.5) * model_outputpred_epsilon = (alpha_prod_t**0.5) * model_output + (beta_prod_t**0.5) * sampleelse:raise ValueError(f"prediction_type given as {self.config.prediction_type} must be one of `epsilon`, `sample`, or"" `v_prediction`")# 4. Clip or threshold "predicted x_0"if self.config.thresholding:pred_original_sample = self._threshold_sample(pred_original_sample)elif self.config.clip_sample:pred_original_sample = pred_original_sample.clamp(-self.config.clip_sample_range, self.config.clip_sample_range)# 5. compute variance: "sigma_t(η)" -> see formula (16)# σ_t = sqrt((1 − α_t−1)/(1 − α_t)) * sqrt(1 − α_t/α_t−1)variance = self._get_variance(timestep, prev_timestep)std_dev_t = eta * variance ** (0.5)if use_clipped_model_output:# the pred_epsilon is always re-derived from the clipped x_0 in Glidepred_epsilon = (sample - alpha_prod_t ** (0.5) * pred_original_sample) / beta_prod_t ** (0.5)# 6. compute "direction pointing to x_t" of formula (12) from https://arxiv.org/pdf/2010.02502.pdfpred_sample_direction = (1 - alpha_prod_t_prev - std_dev_t**2) ** (0.5) * pred_epsilon# 7. compute x_t without "random noise" of formula (12) from https://arxiv.org/pdf/2010.02502.pdfprev_sample = alpha_prod_t_prev ** (0.5) * pred_original_sample + pred_sample_directionif eta > 0:if variance_noise is not None and generator is not None:raise ValueError("Cannot pass both generator and variance_noise. Please make sure that either `generator` or"" `variance_noise` stays `None`.")if variance_noise is None:variance_noise = randn_tensor(model_output.shape, generator=generator, device=model_output.device, dtype=model_output.dtype)variance = std_dev_t * variance_noiseprev_sample = prev_sample + varianceif not return_dict:return (prev_sample,pred_original_sample,)return DDIMSchedulerOutput(prev_sample=prev_sample, pred_original_sample=pred_original_sample)# Copied from diffusers.schedulers.scheduling_ddpm.DDPMScheduler.add_noisedef add_noise(self,original_samples: torch.Tensor,noise: torch.Tensor,timesteps: torch.IntTensor,) -> torch.Tensor:# Make sure alphas_cumprod and timestep have same device and dtype as original_samples# Move the self.alphas_cumprod to device to avoid redundant CPU to GPU data movement# for the subsequent add_noise callsself.alphas_cumprod = self.alphas_cumprod.to(device=original_samples.device)alphas_cumprod = self.alphas_cumprod.to(dtype=original_samples.dtype)timesteps = timesteps.to(original_samples.device)sqrt_alpha_prod = alphas_cumprod[timesteps] ** 0.5sqrt_alpha_prod = sqrt_alpha_prod.flatten()while len(sqrt_alpha_prod.shape) < len(original_samples.shape):sqrt_alpha_prod = sqrt_alpha_prod.unsqueeze(-1)sqrt_one_minus_alpha_prod = (1 - alphas_cumprod[timesteps]) ** 0.5sqrt_one_minus_alpha_prod = sqrt_one_minus_alpha_prod.flatten()while len(sqrt_one_minus_alpha_prod.shape) < len(original_samples.shape):sqrt_one_minus_alpha_prod = sqrt_one_minus_alpha_prod.unsqueeze(-1)noisy_samples = sqrt_alpha_prod * original_samples + sqrt_one_minus_alpha_prod * noisereturn noisy_samples# Copied from diffusers.schedulers.scheduling_ddpm.DDPMScheduler.get_velocitydef get_velocity(self, sample: torch.Tensor, noise: torch.Tensor, timesteps: torch.IntTensor) -> torch.Tensor:# Make sure alphas_cumprod and timestep have same device and dtype as sampleself.alphas_cumprod = self.alphas_cumprod.to(device=sample.device)alphas_cumprod = self.alphas_cumprod.to(dtype=sample.dtype)timesteps = timesteps.to(sample.device)sqrt_alpha_prod = alphas_cumprod[timesteps] ** 0.5sqrt_alpha_prod = sqrt_alpha_prod.flatten()while len(sqrt_alpha_prod.shape) < len(sample.shape):sqrt_alpha_prod = sqrt_alpha_prod.unsqueeze(-1)sqrt_one_minus_alpha_prod = (1 - alphas_cumprod[timesteps]) ** 0.5sqrt_one_minus_alpha_prod = sqrt_one_minus_alpha_prod.flatten()while len(sqrt_one_minus_alpha_prod.shape) < len(sample.shape):sqrt_one_minus_alpha_prod = sqrt_one_minus_alpha_prod.unsqueeze(-1)velocity = sqrt_alpha_prod * noise - sqrt_one_minus_alpha_prod * samplereturn velocitydef __len__(self):return self.config.num_train_timesteps
