VLLM V1 serve在线推理基本流程

离线推理参考之前的博客：

VLLM V1 offline推理1 - 基本流程_推理offline server-CSDN博客

VLLM V1 offline推理2 - Model Executor-CSDN博客

VLLM V1 part 3 - Scheduler-CSDN博客

等，可以看到在线和离线推理底层的一些组件是共用的。

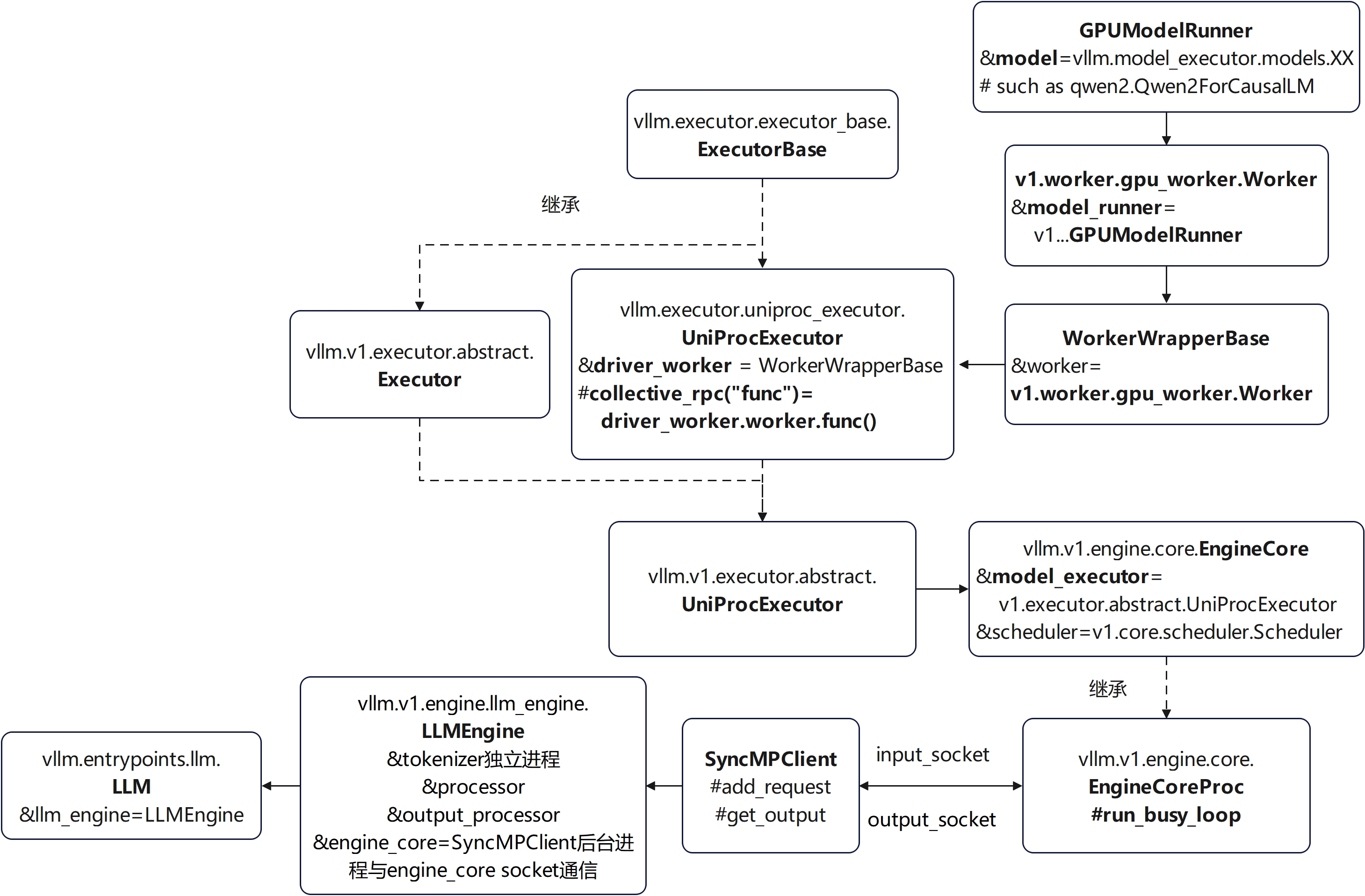

offline执行架构图-单进程

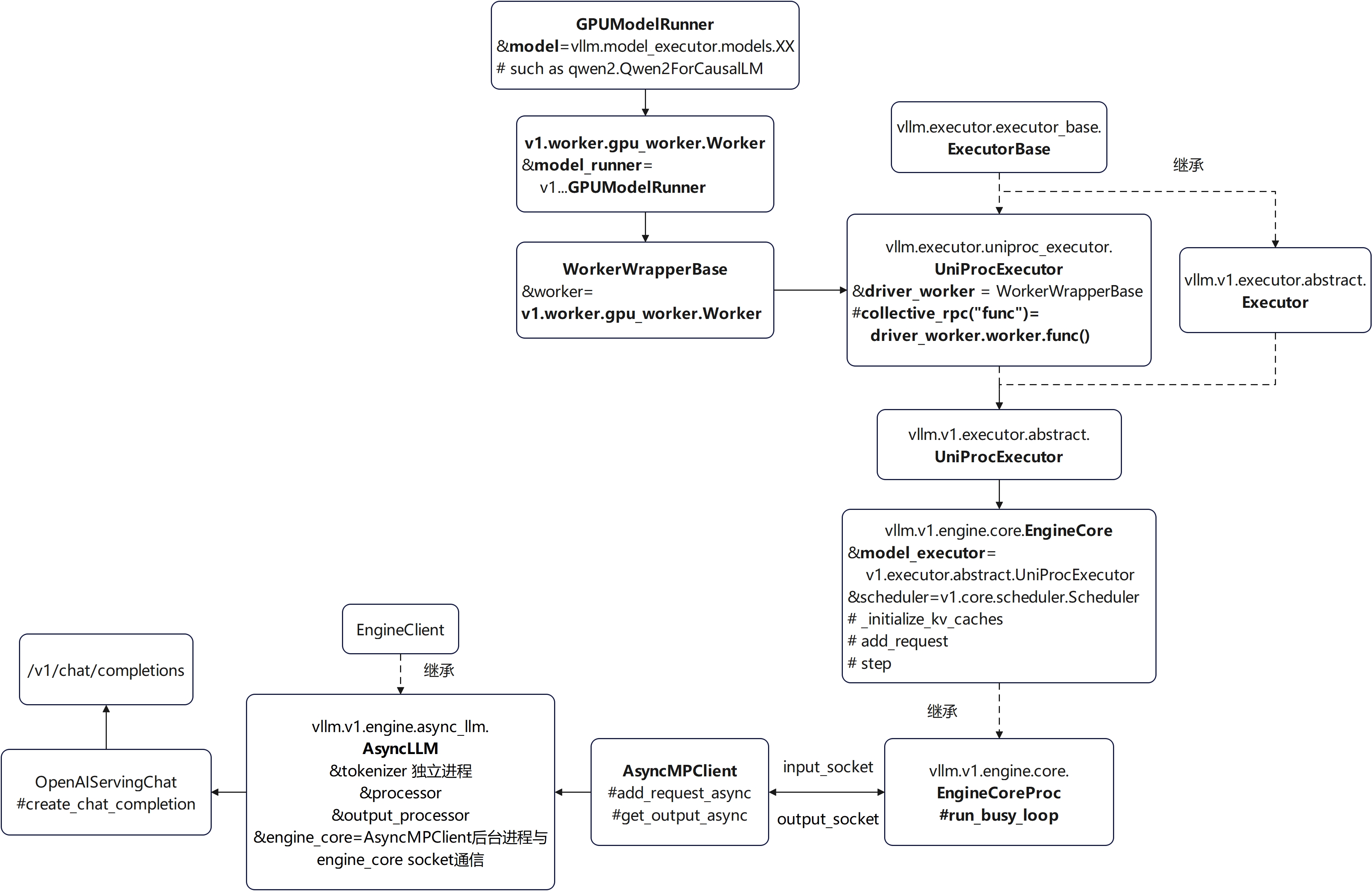

online执行架构图-单进程

online执行架构图-多卡张量并行

AsyncLLM与LLMEngine看上去接口基本上是类似的，但是一个是async def，一个是常规python def。

VLLM V1在线推理example

export VLLM_USE_V1=1vllm serve models/Qwen2.5-1.5B-Instruct # -tp 4

curl http://localhost:8000/v1/chat/completions \-H "Content-Type: application/json" \-d '{"model": "models/Qwen2.5-1.5B-Instruct","messages": [{"role": "system", "content": "You are a helpful assistant."},{"role": "user", "content": "Who won the world series in 2020?"}]}'

vllm serve调用入口：vllm.scripts.py调用vllm\entrypoints\openai\api_server.py的run_server

run_server重要工作之一：

async def run_server(args, **uvicorn_kwargs) -> None:# ...async with build_async_engine_client(args) as engine_client:app = build_app(args)model_config = await engine_client.get_model_config()await init_app_state(engine_client, model_config, app.state, args)shutdown_task = await serve_http(app,host=args.host,port=args.port)@asynccontextmanager
async def build_async_engine_client(args: Namespace) -> AsyncIterator[EngineClient]:# Context manager to handle engine_client lifecycle# Ensures everything is shutdown and cleaned up on error/exitengine_args = AsyncEngineArgs.from_cli_args(args)async with build_async_engine_client_from_engine_args(engine_args, args.disable_frontend_multiprocessing) as engine:yield engine@asynccontextmanager
async def build_async_engine_client_from_engine_args(engine_args: AsyncEngineArgs, disable_frontend_multiprocessing: bool = False,) -> AsyncIterator[EngineClient]:# AsyncLLMEngine.if (MQLLMEngineClient.is_unsupported_config(engine_args) or envs.VLLM_USE_V1 or disable_frontend_multiprocessing):engine_client: Optional[EngineClient] = Nonetry:engine_client = AsyncLLMEngine.from_engine_args(engine_args=engine_args,usage_context=UsageContext.OPENAI_API_SERVER)yield engine_clientasync def init_app_state(engine_client: EngineClient,model_config: ModelConfig,state: State,args: Namespace,
) -> None:state.openai_serving_models = OpenAIServingModels(engine_client=engine_client,model_config=model_config,)await state.openai_serving_models.init_static_loras()state.openai_serving_chat = OpenAIServingChat(engine_client,model_config,state.openai_serving_models,) if model_config.runner_type == "generate" else Nonestate.openai_serving_completion = OpenAIServingCompletion(engine_client,model_config,state.openai_serving_models,)

build_async_engine_client_from_engine_args返回的引擎是

engine_client类型: vllm.v1.engine.async_llm.AsyncLLM。

if (MQLLMEngineClient.is_unsupported_config(engine_args) or envs.VLLM_USE_V1 or disable_frontend_multiprocessing)使用AsyncLLMEngine否则MQLLMEngineClient。

MQLLMEngineClient和AsyncLLMEngine的区别？

这里是AsyncLLMEngine.from_engine_args，为何返回的却是engine.async_llm.AsyncLLM对象？

因为vllm\engine\async_llm_engine.py中虽然定义了个单独的AsyncLLMEngine但是V1实际上被覆盖为了vllm.v1.engine.async_llm.AsyncLLM：

# TODO(v1): Remove this class proxy when V1 goes default.
if envs.VLLM_USE_V1:from vllm.v1.engine.async_llm import AsyncLLMAsyncLLMEngine = AsyncLLM  # type: ignore

chat入口

@router.post("/v1/chat/completions")
@with_cancellation
async def create_chat_completion(request: ChatCompletionRequest,raw_request: Request):handler = chat(raw_request)# handler: OpenAIServingChatgenerator = await handler.create_chat_completion(request, raw_request)if isinstance(generator, ErrorResponse):return JSONResponse(content=generator.model_dump(), status_code=generator.code)elif isinstance(generator, ChatCompletionResponse):return JSONResponse(content=generator.model_dump())return StreamingResponse(content=generator, media_type="text/event-stream")def chat(request: Request) -> Optional[OpenAIServingChat]:return request.app.state.openai_serving_chat

handler实际上是OpenAIServingChat。

generator可能是vllm.entrypoints.openai.protocol.ChatCompletionResponse
