minio改成https+域名访问

news 2025/4/15 17:04:34

思路有两个：

  1. 方式一：通过nginx反向代理，将https配置在nginx，内部的MinIO还是使用HTTP；
  2. 方式二：MinIO服务端直接配置成HTTPS；

注意：
私钥需要命名为：private.key
公钥需要命名为：public.crt (如果公钥是以pem格式结尾，可直接改为crt格式)

一、制作证书（方式二）

（一）、之前对外暴露接口地址为https://ymzn.com

（二）、home目录下新建new_cert目录用于存放证书以及相关文件

[root@localhost home]# mkdir new_cert

（三）、使用openssl分别生成服务端和客户端的公钥及私钥

1、生成服务端私钥
(base) [root@localhost ~]# mkdir new_cert
(base) [root@localhost ~]# cd new_cert/
(base) [root@localhost new_cert]# openssl genrsa -out server.key 1024
Generating RSA private key, 1024 bit long modulus (2 primes)
.......................+++++
............+++++
e is 65537 (0x010001)
2、生成服务端公钥
(base) [root@localhost new_cert]# openssl rsa -in server.key -pubout -out server.pem
writing RSA key
(base) [root@localhost new_cert]# openssl genrsa -out client.key 1024
Generating RSA private key, 1024 bit long modulus (2 primes)
.........................+++++
..........+++++
e is 65537 (0x010001)
3、生成客户端私钥
(base) [root@localhost new_cert]# openssl rsa  -in client.key -pubout -out client.pem
writing RSA key
4、生成客户端公钥
(base) [root@localhost new_cert]# ll
total 16
-rw------- 1 root root 887 Apr  6 14:44 client.key
-rw-r--r-- 1 root root 272 Apr  6 14:44 client.pem
-rw------- 1 root root 887 Apr  6 14:43 server.key
-rw-r--r-- 1 root root 272 Apr  6 14:44 server.pem
(base) [root@localhost new_cert]#

（四）、生成CA证书

1、生成CA私钥
(base) [root@localhost new_cert]# openssl genrsa -out ca.key 1024
Generating RSA private key, 1024 bit long modulus (2 primes)
..........+++++
.........................+++++
e is 65537 (0x010001)
(base) [root@localhost new_cert]#
2、生成CA证书签名请求文件CSR
(base) [root@localhost new_cert]# openssl req -new -key ca.key -out ca.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:cn
State or Province Name (full name) [Some-State]:beijing
Locality Name (eg, city) []:chaoyang
Organization Name (eg, company) [Internet Widgits Pty Ltd]:ymzn_ca
Organizational Unit Name (eg, section) []:ymzn_sms_ca
Common Name (e.g. server FQDN or YOUR name) []:ymzn.com
Email Address []:
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:123456
An optional company name []:
(base) [root@localhost new_cert]#
3、使用私钥KEY文件和CSR文件签名生成CRT证书
(base) [root@localhost new_cert]# openssl x509 -req -in ca.csr -signkey ca.key -out ca.crt
Signature ok
subject=C = cn, ST = beijing, L = chaoyang, O = hlhk_ca, OU = hlhk_sms_ca, CN = ymzn.com
Getting Private key
(base) [root@localhost new_cert]#

(五）、生成服务器端和客户端CRT证书

1、生成服务端签名请求CSR文件
(base) [root@localhost new_cert]# openssl req -new -key server.key -out server.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:cn
State or Province Name (full name) [Some-State]:beijing
Locality Name (eg, city) []:chaoyang
Organization Name (eg, company) [Internet Widgits Pty Ltd]:ymzn_serve
Organizational Unit Name (eg, section) []:ymzn_sms_serve
Common Name (e.g. server FQDN or YOUR name) []:ymzn.com
Email Address []:
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
(base) [root@localhost new_cert]#
2、生成客户端签名请求CSR文件
(base) [root@localhost new_cert]# openssl req -new -key client.key -out client.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [AU]:cn
State or Province Name (full name) [Some-State]:beijing
Locality Name (eg, city) []:chaoyang
Organization Name (eg, company) [Internet Widgits Pty Ltd]:ymzn_client
Organizational Unit Name (eg, section) []:ymzn_sms_client
Common Name (e.g. server FQDN or YOUR name) []:ymzn.com
Email Address []:
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:123456
An optional company name []:
(base) [root@localhost new_cert]#

这里服务端和客户端的Organization Name (eg, company)以及Organizational Unit Name都必须要和CA的不一样才可以

3、向刚才生成的自己的CA机构申请签名CRT证书（服务端和客户端）
(base) [root@localhost new_cert]# openssl x509 -req -CA ca.crt -CAkey ca.key -CAcreateserial -in server.csr -out server.crt
Signature ok
subject=C = cn, ST = beijing, L = chaoyang, O = hlhk_serve, OU = hlhk_sms_serve, CN = ymzn.com
Getting CA Private Key
(base) [root@localhost new_cert]# openssl x509 -req -CA ca.crt -CAkey ca.key -CAcreateserial -in client.csr -out client.crt
Signature ok
subject=C = cn, ST = beijing, L = chaoyang, O = hlhk_client, OU = hlhk_sms_client, CN = ymzn.com
Getting CA Private Key
(base) [root@localhost new_cert]#

(base) [root@localhost new_cert]# ll
total 48
-rw-r--r-- 1 root root 891 Apr  6 14:46 ca.crt
-rw-r--r-- 1 root root 737 Apr  6 14:46 ca.csr
-rw------- 1 root root 891 Apr  6 14:44 ca.key
-rw-r--r-- 1 root root  41 Apr  6 14:50 ca.srl
-rw-r--r-- 1 root root 904 Apr  6 14:50 client.crt
-rw-r--r-- 1 root root 749 Apr  6 14:49 client.csr
-rw------- 1 root root 887 Apr  6 14:44 client.key
-rw-r--r-- 1 root root 272 Apr  6 14:44 client.pem
-rw-r--r-- 1 root root 899 Apr  6 14:49 server.crt
-rw-r--r-- 1 root root 712 Apr  6 14:47 server.csr
-rw------- 1 root root 887 Apr  6 14:43 server.key
-rw-r--r-- 1 root root 272 Apr  6 14:44 server.pem
(base) [root@localhost new_cert]#

(六)、最后生成需要的key和crt文件

(base) [root@localhost new_cert]# openssl rsa -in server.key -out private.key
writing RSA key
(base) [root@localhost new_cert]# openssl x509 -req -days 3650 -in server.csr -signkey private.key -out public.crt
Signature ok
subject=C = cn, ST = beijing, L = chaoyang, O = hlhk_serve, OU = hlhk_sms_serve, CN = ymzn.com
Getting Private key
(base) [root@localhost new_cert]#

报错：

1. x509: certificate relies on legacy Common Name field, use SANs instead
  1. 检查并删除旧的证书和私钥
    在重新生成证书之前，确保删除旧的证书和私钥文件，以避免混淆。
# 删除旧的证书和私钥
rm -f server.key server.csr server.crt
  1. 创建新的证书配置文件
    确保新的配置文件中包含正确的Common Name和Subject Alternative Name。

创建一个名为openssl.cnf的新文件，内容如下：

[req]
distinguished_name = req_distinguished_name
req_extensions = v3_req
prompt = no[req_distinguished_name]
C = cn
ST = beijing
L = chaoyang
O = ymzn_client
OU = ymzn_sms_client
CN = ymzn.com  # 确保填写的是域名[v3_req]
subjectAltName = @alt_names[alt_names]
DNS.1 = ymzn.com  # 声明支持的域名
  1. 重新生成私钥、证书请求（CSR）和证书
# 生成新的私钥和证书请求
openssl req -new -nodes -newkey rsa:2048 \-keyout server.key -out server.csr \-config openssl.cnf# 生成新的自签名证书
openssl x509 -req -days 3650 -in server.csr \-signkey server.key -out server.crt \-extensions v3_req -extfile openssl.cnf
  1. 验证证书内容
    确认新生成的证书中包含正确的域名。
openssl x509 -in public.crt -text -noout | grep -E "Subject:|DNS:"

输出应包含：

Subject: C=cn, ST=beijing, L=chaoyang, O=ymzn_client, OU=ymzn_sms_client, CN=ymzn.com DNS:ymzn.com

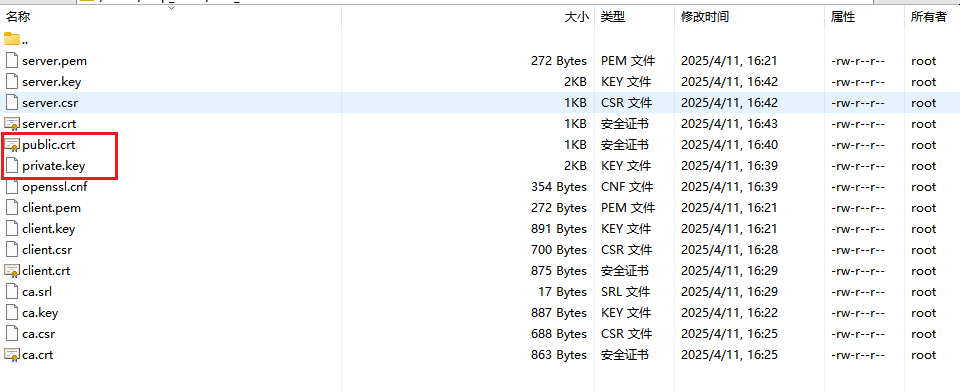

在这里插入图片描述

二、docker-compose中minio配置

  minio:image: minio/minio:RELEASE.2022-05-26T05-48-41Zcontainer_name: miniorestart: unless-stoppedports:# api 端口- "9000:9000"# 控制台端口- "9001:9001"environment:# 时区上海TZ: Asia/Shanghai# 管理后台用户名MINIO_ACCESS_KEY: admin#MINIO_ROOT_USER: admin# 管理后台密码，最小8个字符MINIO_SECRET_KEY: MiNio@tp&eWz#MINIO_ROOT_PASSWORD: MiNio@tp&eWz# https需要指定域名MINIO_SERVER_URL: "https://ymzn.com:9000"MINIO_BROWSER_REDIRECT_URL: "https://ymzn.com:9001"# 添加以下两行#MINIO_SSL_CERT_FILE: /root/.minio/certs/public.crt#MINIO_SSL_KEY_FILE: /root/.minio/certs/private.key# 开启压缩 on 开启 off 关闭MINIO_COMPRESS: "off"# 扩展名 .pdf,.doc 为空 所有类型均压缩MINIO_COMPRESS_EXTENSIONS: ""# mime 类型 application/pdf 为空 所有类型均压缩MINIO_COMPRESS_MIME_TYPES: ""volumes:# 映射当前目录下的data目录至容器内/data目录- /home/emp_cloud/minio/data:/data# 映射配置目录- /home/emp_cloud/minio/config:/root/.minio/command: server --address 'ymzn.com:9000' --console-address 'ymzn.com:9001' /data  # 指定容器中的目录 /dataprivileged: truenetwork_mode: "host"

三、linux上配置

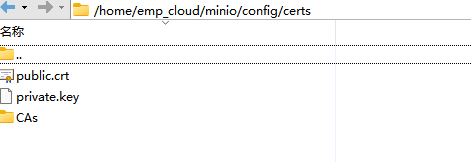

1.将文件private.key和public.crt文件拷贝到/home/emp_cloud/minio/config/certs中

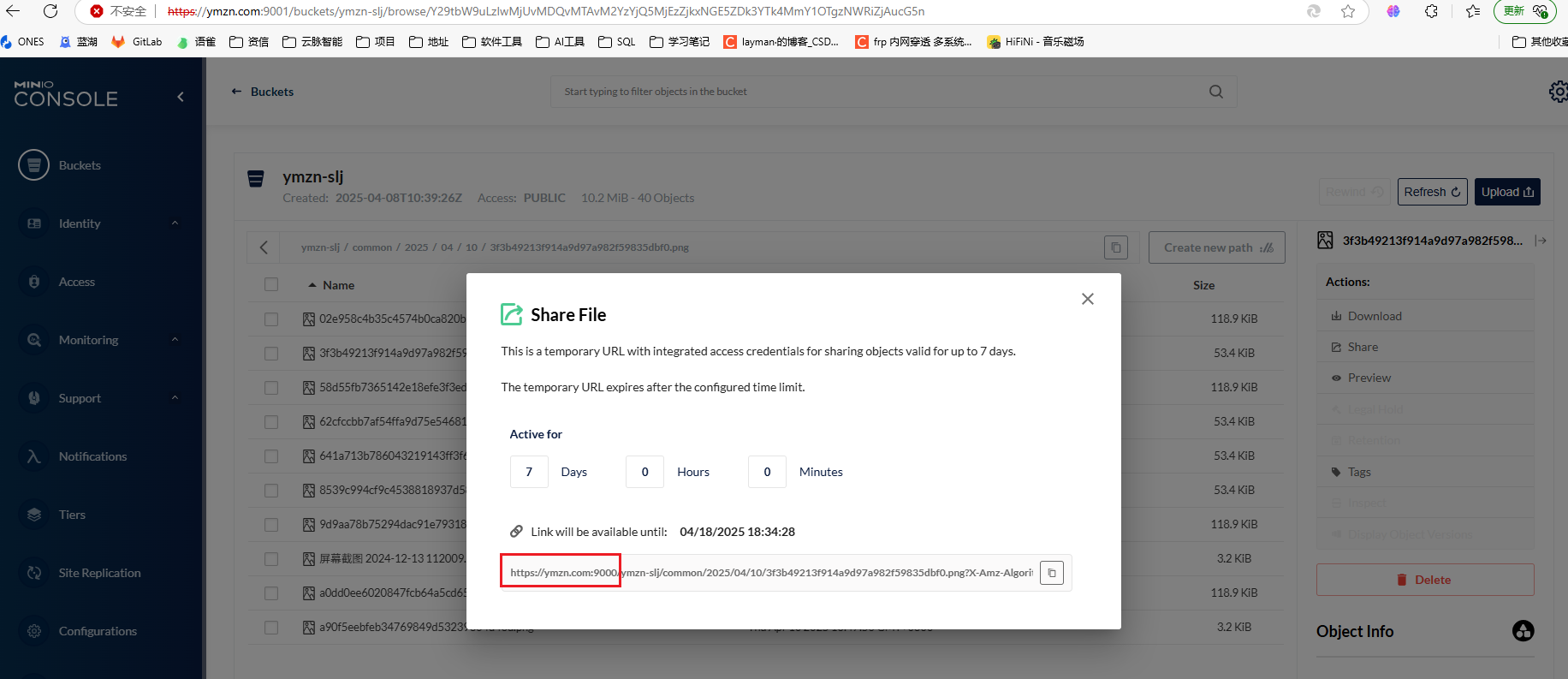

在这里插入图片描述
在这里插入图片描述

2.制作minio镜像并启动容器

docker-compose up -d --build --force-recreate minio

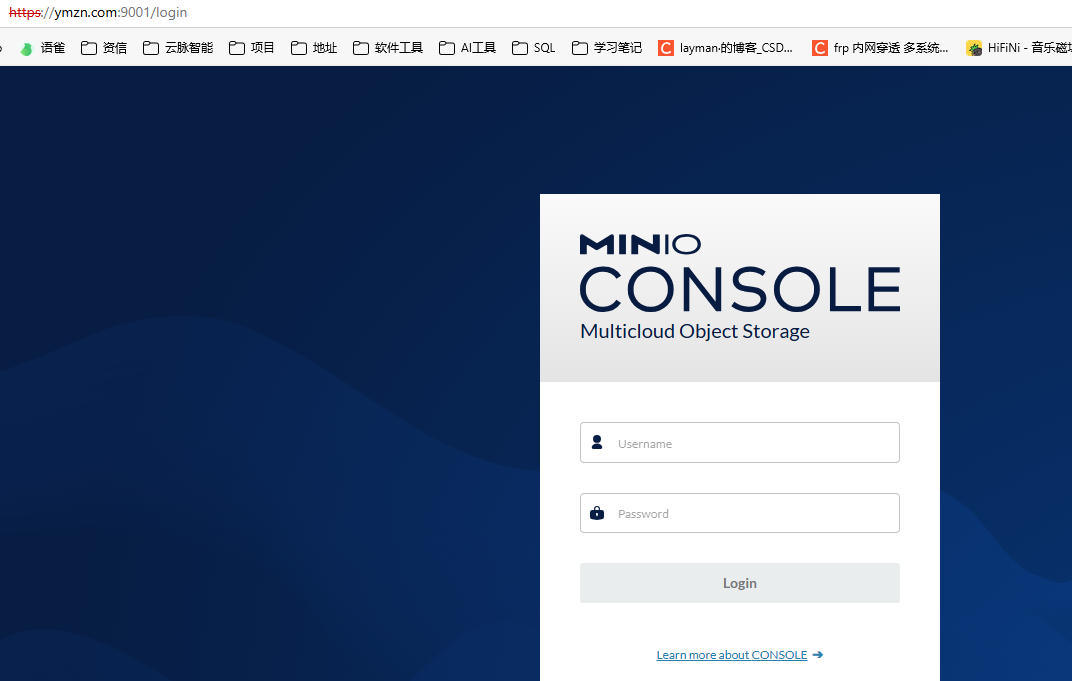

三、浏览器https://ymzn.com:9001登录

在这里插入图片描述
在这里插入图片描述

四、导入SSL证书到Java信任库

1. 问题：minio修改成https后, 系统上传照片报错

com.cvit.common.oss.exception.OssException: 创建Bucket失败, 请核对配置信息:[Unable to execute HTTP request: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target]at com.cvit.common.oss.core.OssClient.createBucket(OssClient.java:87)at com.cvit.common.oss.core.OssClient.<init>(OssClient.java:67)at com.cvit.common.oss.factory.OssFactory.refresh(OssFactory.java:72)at com.cvit.common.oss.factory.OssFactory.instance(OssFactory.java:60)at com.cvit.master.empReport.utils.PictureUploadUtils.UploadToFile(PictureUploadUtils.java:92)at com.cvit.master.evaluation.service.impl.AppCommonServiceImpl.upload(AppCommonServiceImpl.java:214)at com.cvit.master.evaluation.controller.app.AppCommonController.upload(AppCommonController.java:45)at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)at java.lang.reflect.Method.invoke(Method.java:498)at org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:205)at org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:150)at org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:117)at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:895)at org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:808)at org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)at org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1071)at org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:964)at org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1006)at org.springframework.web.servlet.FrameworkServlet.doPost(FrameworkServlet.java:909)

操作步骤
1. 导出Minio服务器证书

openssl s_client -connect your-minio-domain:9000 </dev/null | openssl x509 -outform PEM > minio.crt如商洛局系统:
openssl s_client -connect ymzn.com:9000 </dev/null | openssl x509 -outform PEM > minio.crt

2. 导入到JRE信任库（注意替换JAVA_HOME路径）

方式一：放在当前目录下

直接将 minio.crt 放在执行 keytool 命令时的当前目录，命令中直接使用文件名：

keytool -import -alias minio -keystore $JAVA_HOME/jre/lib/security/cacerts -file minio.crt

方式二：放在其他目录
如果 minio.crt 在其他目录，需指定完整路径：

  • 默认密码：changeit
# Linux/macOS 示例
keytool -import -alias minio -keystore $JAVA_HOME/jre/lib/security/cacerts -file /home/user/certs/minio.crt# Windows 示例
keytool -import -alias minio -keystore %JAVA_HOME%\jre\lib\security\cacerts -file C:\certs\minio.crt
如商洛局系统（win本地）:
keytool -import -alias minio -keystore E:\soft_development\Java\jdk1.8.0_231\jre\lib\security\cacerts -file E:\项目\资信报备平台\商洛局\商洛局上线\minio.crt
